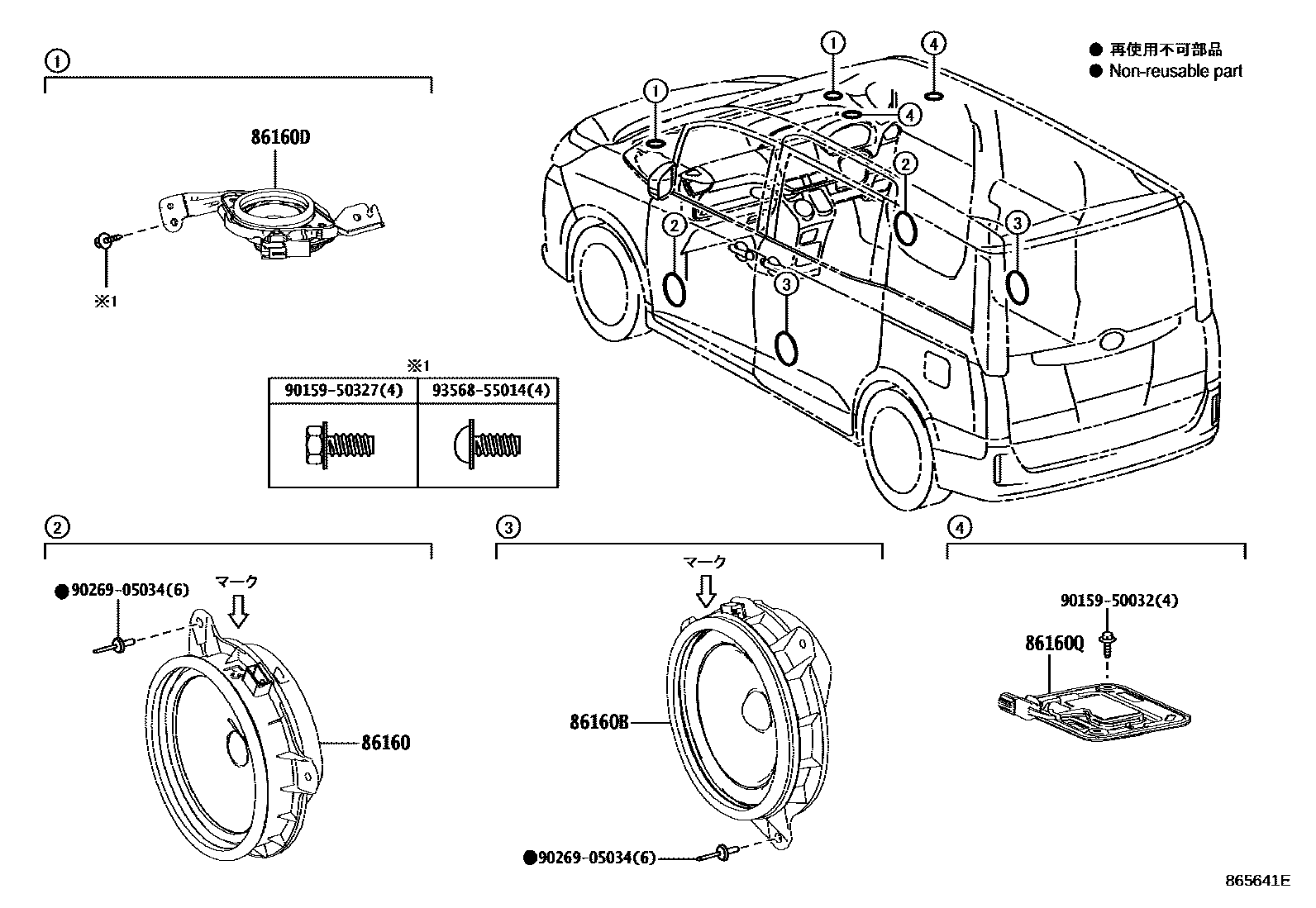

Toyota NOAH/VOXY/ESQUIRE — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-28820×2iZWR80..G,GI,V,X,XI201401-201706

main86160-52300×2iZWR80201812

main86160-30F50×2supersedes 86160-52300iZRR8#..NOAH,VOXY201401-201601

86160BSPEAKER ASSY, REAR

main86150-28170×2supersedes 86160-52300iZRR8#..08S..(G,V);ZRR8#,ZWR80..07S..(G,GI,V)201401-201706

main86160-28820×2iZWR80..SI,X,XI,ZS201706-201811

main86160-52300×2supersedes 86160-52300iZWR80..(ESQIR,VOXY)..(X,XI)201812-202004

86160DSPEAKER ASSY, STEREO COMPONENT, FRONT

main86150-28140iZRR8#..(SI,ZS)..CBU202005

main86150-28150iZRR8#..(SI,ZS)..CBU202005

86160QSPEAKER ASSY, ROOF

main86150-28160×2iZRR8#..08S..(G,V);ZRR8#,ZWR80..07S..(G,GI,V)201401-201608

main86150-28161×2iZRR8#..08S..(G,V);ZRR8#,ZWR80..07S..(G,GI,V)201609-201706

9015950032

main90159-50032

9015950327

main90159-50327

9026905034

main90269-05034

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
