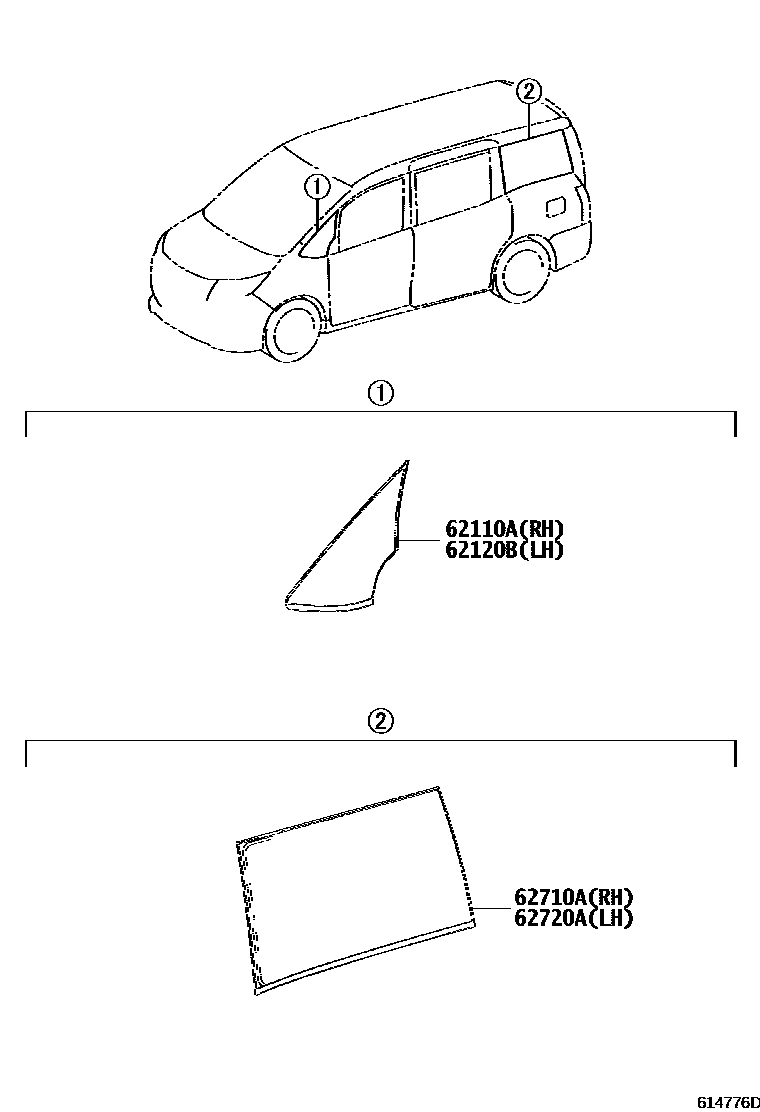

Toyota NOAH/VOXY/ESQUIRE — SIDE WINDOW

0001 1 0002 1

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-28080iZRR8#,ZWR80..NOAH,VOXY201401-201610

main62110-28081iZRR8#,ZWR80..NOAH,VOXY201610-201706

main62110-28090iZRR8#,ZWR80..ESQIR201410-201610

main62110-28091iZRR8#,ZWR80..ESQIR201610-201706

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-28210iZRR8#,ZWR80..NOAH,VOXY201401-201610

main62120-28211iZRR8#,ZWR80..VOXY..(V,X)201706-202004

main62120-28220iZRR8#,ZWR80..ESQIR201410-201610

main62120-28221iZRR8#,ZWR80..XI201706-202004

62710AWINDOW ASSY, QUARTER, RH

main62710-28560iZRR8#,ZWR80..NOAH,VOXY201401-201509

main62710-28561iZRR8#,ZWR80..NOAH,VOXY201510-201706

main62710-28570iZRR8#,ZWR80..ESQIR201410-201509

main62710-28571iZRR8#,ZWR80..ESQIR201510-201706

main62710-28620iZRR8#,ZWR80..G,V201706

main62710-28640iZRR8#..GI;ZWR80..ESQIR201706

main62710-28580iZRR8#..NOAH,VOXY201401-201509

main62710-28581iZRR8#..NOAH,VOXY201601-201706

main62710-28590iZRR8#..ESQIR201410-201509

main62710-28591supersedes 62710-28571iZRR8#..XI201706-202004

main62710-28630iZRR8#..G,V201706

main62710-28650iZRR8#..GI201706

62720AWINDOW ASSY, QUARTER, LH

main62720-28450iZRR8#,ZWR80..NOAH,VOXY201401-201509

main62720-28451iZRR8#,ZWR80..NOAH,VOXY201510-201610

main62720-28452iZRR8#,ZWR80..NOAH,VOXY201610-201706

main62720-28460iZRR8#,ZWR80..ESQIR201410-201509

main62720-28461iZRR8#,ZWR80..ESQIR201510-201610

main62720-28462iZRR8#,ZWR80..ESQIR201610-201706

main62720-28510iZRR8#,ZWR80..G,V201706

main62720-28530iZRR8#..GI;ZWR80..ESQIR201706

main62720-28470iZRR8#..NOAH,VOXY201401-201509

main62720-28471iZRR8#..NOAH,VOXY201510-201601

main62720-28480iZRR8#..ESQIR201410-201509

main62720-28481supersedes 62720-28462iZRR8#..ESQIR201510-201706

main62720-28520iZRR8#..G,V201706

main62720-28540iZRR8#..GI201706

4 parts on this diagram · 2 diagrams in section
