Toyota NOAH/VOXY/ESQUIRE — SIDE WINDOW

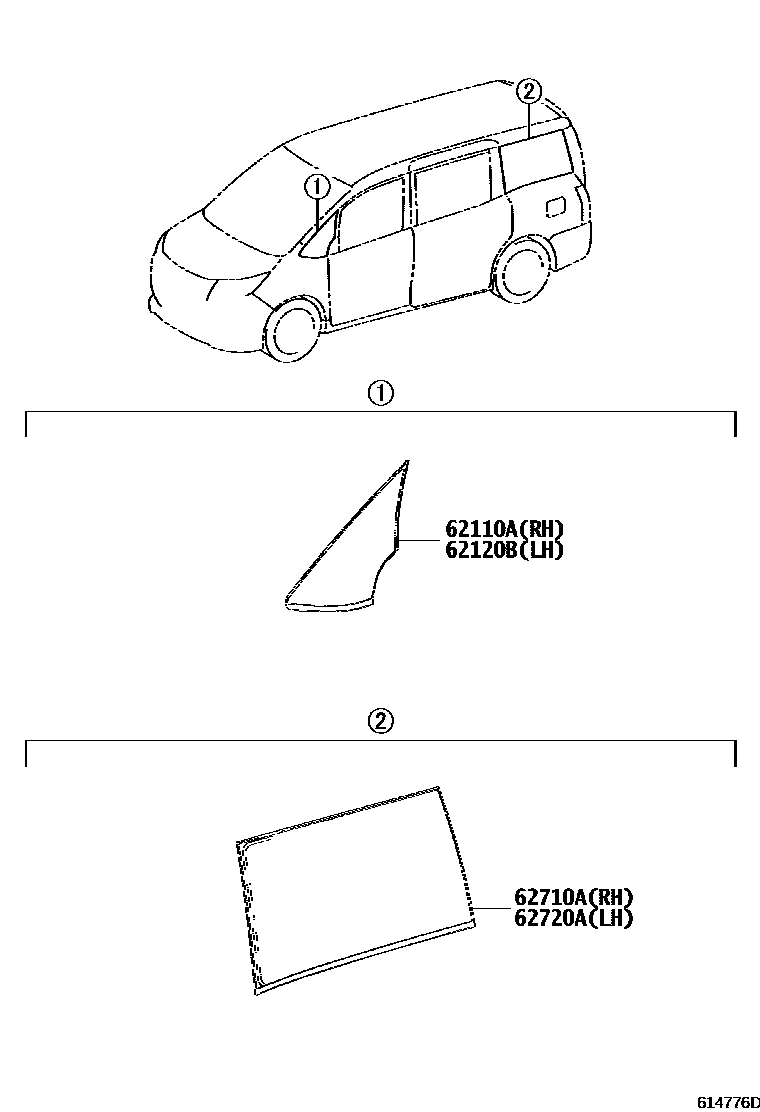

Parts diagram

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-28080i201401-201610

main62110-28081i201610-202004

main62110-28090i201410-201610

main62110-28091i201610-202004

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-28210i201401-201610

main62120-28211i201610-202004

main62120-28220i201410-201610

main62120-28221i201610-202004

62710AWINDOW ASSY, QUARTER, RH

main62710-28560i201401-201509

main62710-28561i201510-201706

main62710-28570i201410-201509

main62710-28571i201510-202004

main62710-28620i201706

main62710-28640i201706

62720AWINDOW ASSY, QUARTER, LH

main62720-28450i201401-201509

main62720-28451i201510-201610

main62720-28452i201610-201706

main62720-28460i201410-201509

main62720-28461i201510-201610

main62720-28462i201610-202004

main62720-28510i201706

main62720-28530i201706

4 parts on this diagram · 2 diagrams in section

SIDE WINDOW for Toyota NOAH/VOXY/ESQUIRE

This section contains 4 genuine Toyota parts for the SIDE WINDOW system of the Toyota NOAH/VOXY/ESQUIRE. Key components include: WINDOW ASSY, FRONT SIDE FIX, RH, WINDOW ASSY, FRONT SIDE FIX, LH, WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH.
