Toyota NOAH/VOXY/ESQUIRE — SHORT BLOCK ASSEMBLY

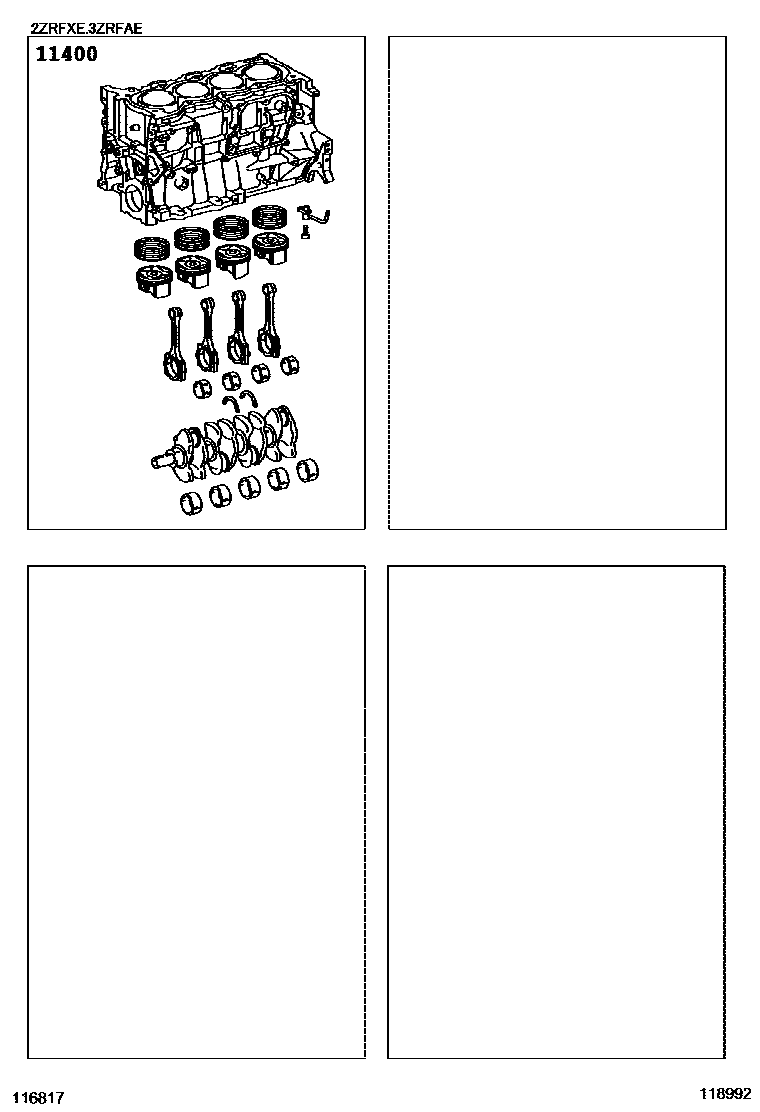

Parts diagram
11400BLOCK ASSY, SHORT
main11400-37140i201706-202004
main11400-37230i201401-201706
main11400-37260i201810-202004

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota NOAH/VOXY/ESQUIRE

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota NOAH/VOXY/ESQUIRE. Key components include: BLOCK ASSY, SHORT.
