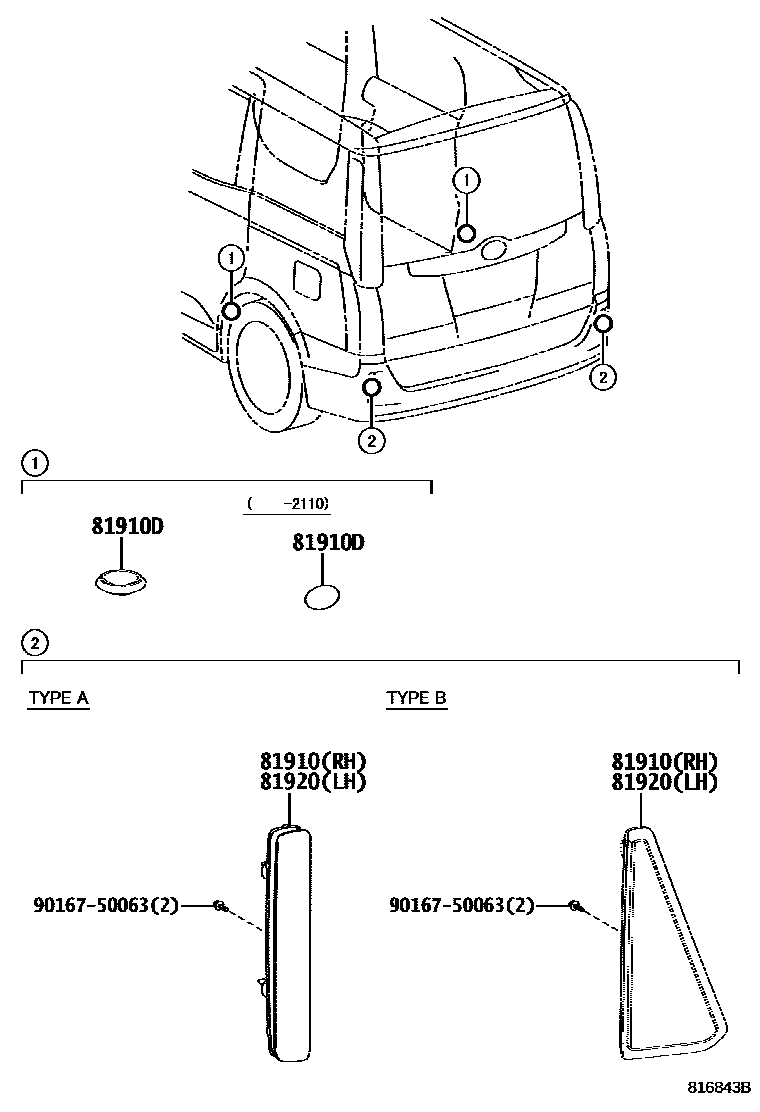

Toyota NOAH/VOXY/ESQUIRE — REFLEX REFLECTOR

81910REFLECTOR ASSY, REFLEX, RH

main81910-28020iZRR8#,ZWR80..(SI,ZS)..CBU201401-201706

main81910-47010iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

81910DREFLECTOR ASSY, REFLEX, REAR

main81580-V1040×2iZRR8#,ZWR80202110

main81910-21030×2iZRR8#,ZWR80201706-202110

81920REFLECTOR ASSY, REFLEX, LH

main81920-28020iZRR8#,ZWR80..(SI,ZS)..CBU201401-201706

main81920-47010iZRR80..(SI,ZS)..IV5;ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X)201706

9016750063

main90167-50063

4 parts on this diagram · 1 diagram in section
