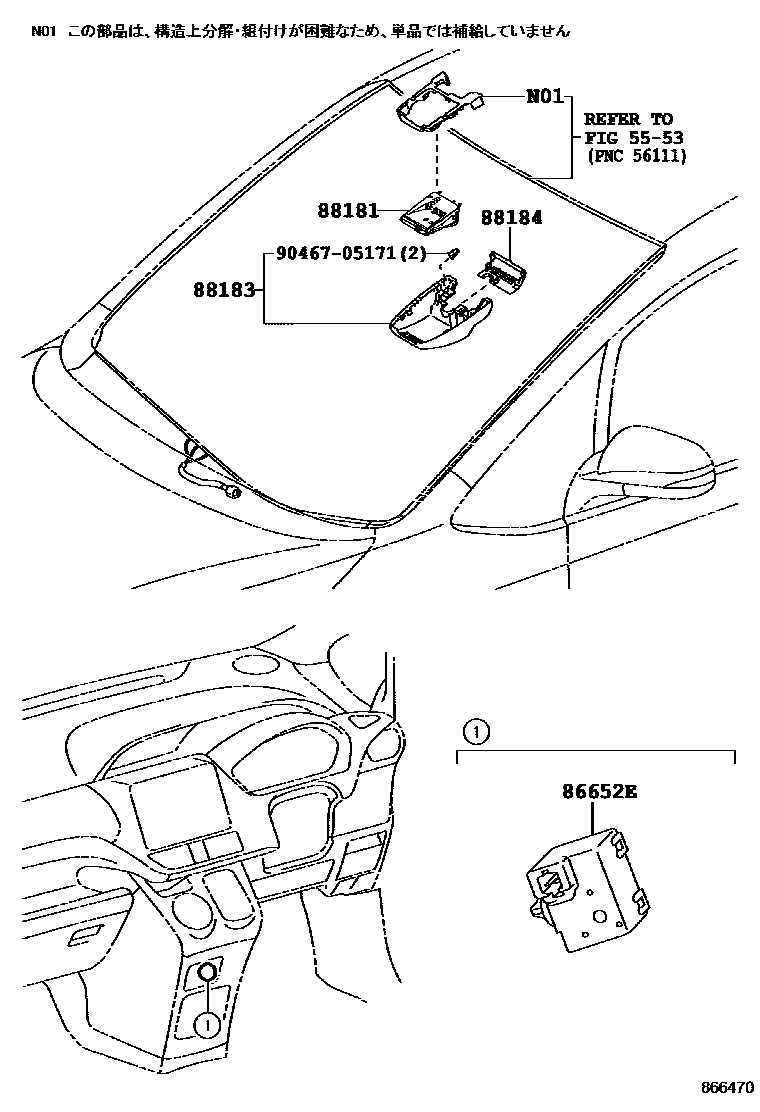

Toyota NOAH/VOXY/ESQUIRE — PRE-COLLISION SYSTEM

0001 1 0002 1

5553

86652EBUZZER, PRE-COLLISION CITY

main86652-50010iZRR8#..X201601-201706

88181SENSOR, PRE-COLLISION CITY

main88181-0W070iZRR8#..X201601-201706

sub88181-0W071

main88181-0W140iZRR8#..X201706-201807

main88181-0W141iZRR8#..X201807-201901

sub88181-V1020

main88181-0W170iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201901-202004

88183COVER, PRE-COLLISION CITY

main88183-28010iZRR8#..X201601-201706

main88183-28030iZRR8#..V,XI;ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

88184COVER, PRE-COLLISION CITY, 2ND

main88184-28010iZRR8#..X201601-201706

9046705171

main90467-05171

6 parts on this diagram · 2 diagrams in section
