Toyota NOAH/VOXY/ESQUIREHORN

Parts diagram
8401SWITCH & RELAY & COMPUTER
86510HORN ASSY, HIGH PITCHED
main86510-20280i201706-202004
main86510-28130i201401-201706
86520HORN ASSY, LOW PITCHED
main86520-20300i201706
main86520-28180i201401-201706
86570SPEAKER ASSY, VEHICLE APPROACHING
main86570-28020i201402-201409
main86570-28021i201410-201706
main86570-28030i201901-202004
86572CONTROLLER, VEHICLE APPROACHING SPEAKER
main86572-28030i201402-201706
main86572-28050i201706-201901
main86572-28060i201901-202004
9011908C83
9017906115

7 parts on this diagram · 1 diagram in section

HORN for Toyota NOAH/VOXY/ESQUIRE

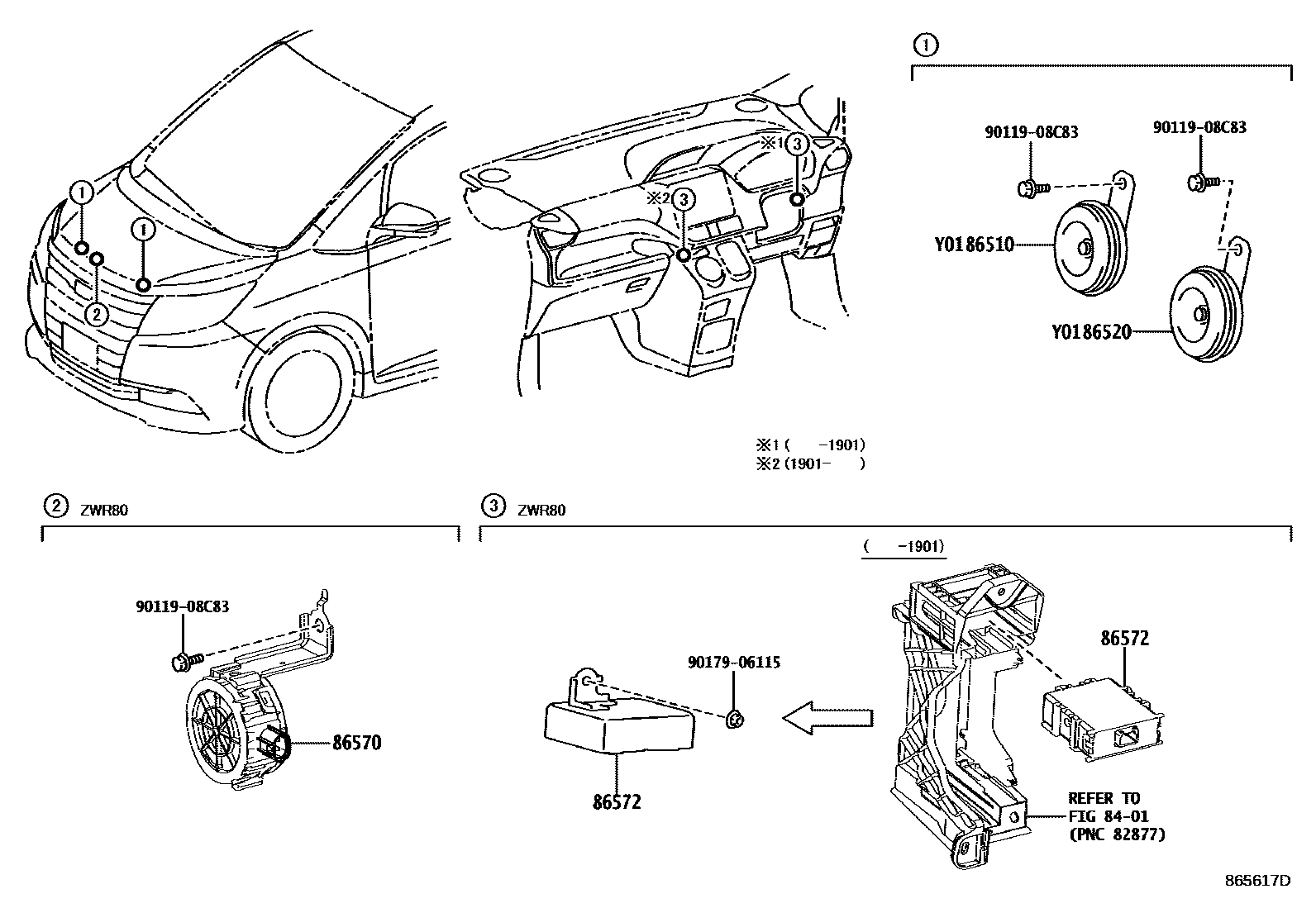

This section contains 7 genuine Toyota parts for the HORN system of the Toyota NOAH/VOXY/ESQUIRE. Key components include: SWITCH & RELAY & COMPUTER, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, CONTROLLER, VEHICLE APPROACHING SPEAKER.
