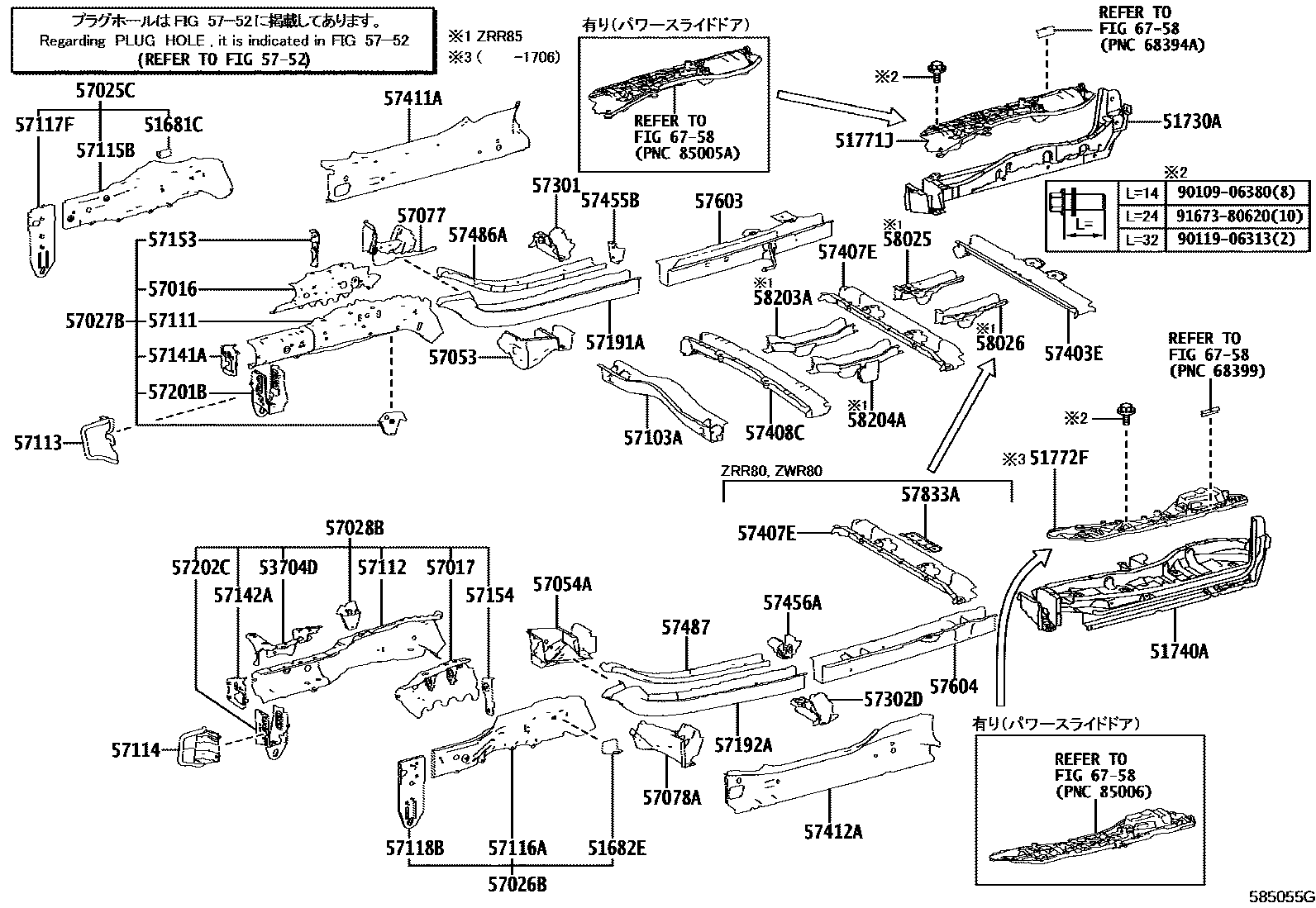

Toyota NOAH/VOXY/ESQUIRE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1����������� 0002 1�������

51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-32050iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-32040iZRR8#,ZWR80201401-201706

51730ASTEP ASSY, REAR FLOOR, RH

main51730-28180iZRR8#,ZWR80201401-201706

51740ASTEP ASSY, REAR FLOOR, LH

main51740-28180iZRR8#,ZWR80201401-201706

51771JSTEP, RH

main51730-28160iZRR8#,ZWR80..G,SI,V,X,XI,ZS201401-201706

51772FSTEP, LH

main51740-28160iZRR80..08S..X..IV5201401-201706

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-28100iZRR8#,ZWR80201401-201706

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-28110iZRR8#,ZWR80201401-201706

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-28090iZRR8#,ZWR80201401-201706

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-28050iZRR8#,ZWR80201401-201706

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-28030iZRR8#,ZWR80201401-201706

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-28030iZRR8#,ZWR80201401-201706

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-28030iZRR8#,ZWR80201401-201706

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-28030iZRR8#,ZWR80201401-201706

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-28020iZRR8#,ZWR80201401-201706

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-28030iZRR8#,ZWR80201401-201706

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-28030iZRR8#,ZWR80201401-201706

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-28050iZRR8#,ZWR80201401-201706

57111MEMBER, FRONT SIDE, RH

main57111-28270iZRR8#,ZWR80201401-201706

57112MEMBER, FRONT SIDE, LH

main57112-28250iZRR8#,ZWR80201401-201706

57113EXTENSION, FRONT SIDE MEMBER, RH

main53287-28030iZRR8#,ZWR80..ESQIR,NOAH201401-201706

main53287-28040iZRR8#,ZWR80..VOXY201401-201706

57114EXTENSION, FRONT SIDE MEMBER, LH

main53288-28030iZRR8#,ZWR80..ESQIR,NOAH201401-201706

main53288-28040iZRR8#,ZWR80..VOXY201401-201706

57115BPLATE, FRONT SIDE MEMBER, NO.1 RH

main57115-44020iZRR8#,ZWR80201401-201706

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-44020iZRR8#,ZWR80201401-201706

57117FPLATE, FRONT SIDE MEMBER, NO.2 RH

main57117-28070iZRR8#,ZWR80201401-201706

57118BPLATE, FRONT SIDE MEMBER, NO.2 LH

main57118-28040iZRR8#,ZWR80201401-201706

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-28030iZRR8#,ZWR80201401-201706

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-28030iZRR8#,ZWR80201401-201706

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-28090iZRR8#,ZWR80201401-201706

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-28060iZRR8#,ZWR80201401-201706

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-28050iZRR8#,ZWR80201401-201706

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-28040iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201706

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-28030iZRR8#,ZWR80201401-201706

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-28030iZRR8#,ZWR80201401-201706

57301OUTRIGGER SUB-ASSY, NO.1 RH

main57301-28140iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

57302DOUTRIGGER SUB-ASSY, NO.1 LH

main57302-28100iZRR8#,ZWR80201401-201706

57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-28160iZRR8#..08S201401-201706

main57403-28170iZRR8#,ZWR80..07S201401-201706

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-28020iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-28170iZRR8#,ZWR80201401-201605

main57408-28180iZRR85..(ESQIR,VOXY)..(V,X,XI)201706-202004

main57408-28190iZRR80,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-28050iZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS201706

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-28060iZRR8#,ZWR80201401-201706

57455BGUSSET, FRONT FLOOR CROSSMEMBER, RH

main57455-28050iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

57456AGUSSET, FRONT FLOOR CROSSMEMBER, LH

main57456-28040iZRR8#,ZWR80201401-201706

57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57127-28120iZRR8#,ZWR80201401-201706

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57128-28090iZRR8#,ZWR80201401-201706

5752

57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57603-28130iZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

main57603-28140iZRR80..07S..(SI,ZS)..CBU201709

57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57604-28100iZRR8#,ZWR80201401-201706

57833AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.3

main57833-28030iZRR80,ZWR80..NOAH..X;ZRR80,ZWR80..G,GI,SI,ZS201706

58025REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58025-28030iZRR85201401-201706

58026REINFORCE SUB-ASSY, DRIVE SHAFT CENTER SUPPORT, REAR

main58026-28030iZRR85201401-201706

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-28030iZRR85201401-201706

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-28010iZRR85201401-201706

6758

9010906380

main90109-06380

9011906313

main90119-06313

9167380620

main91673-80620

57 parts on this diagram · 2 diagrams in section
