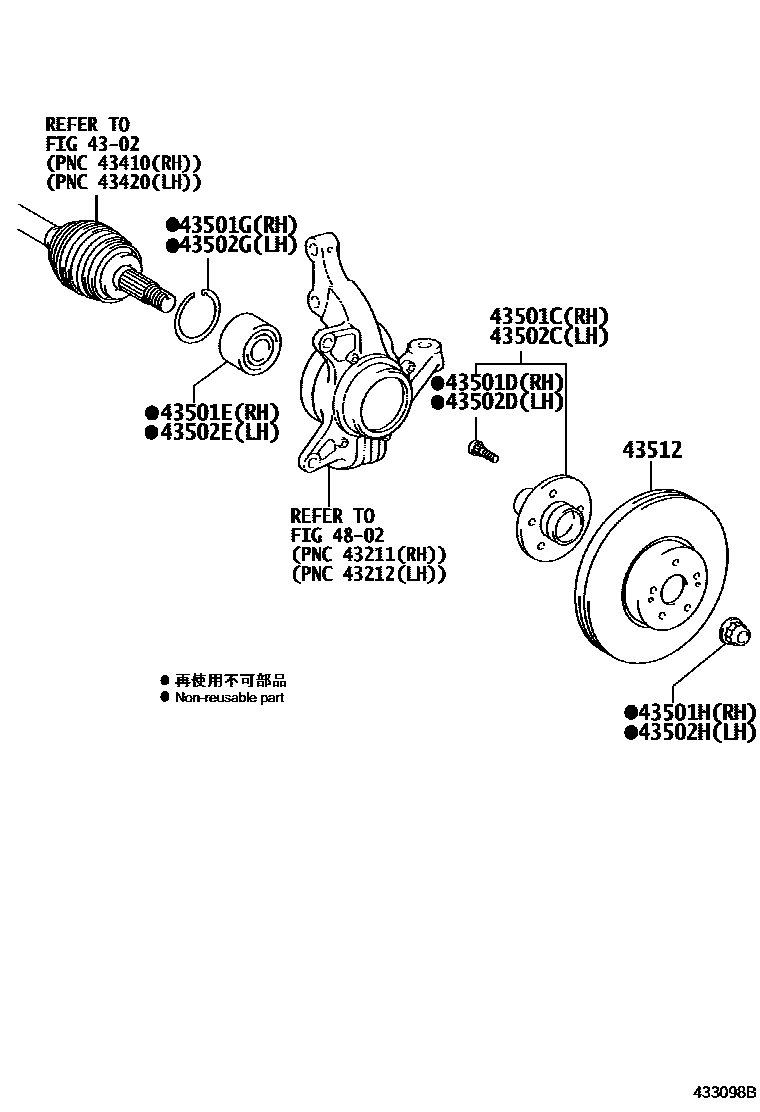

Toyota NOAH/VOXY/ESQUIRE — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-42020i201401-202004

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049i201401-202004

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43009i201401-202004

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001i201401-202004

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201401-202004

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-42020i201401-202004

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049i201401-202004

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43009i201401-202004

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001i201401-202004

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201401-202004

43512DISC, FRONT

main43512-42040i201401-202004

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota NOAH/VOXY/ESQUIRE

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota NOAH/VOXY/ESQUIRE. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
