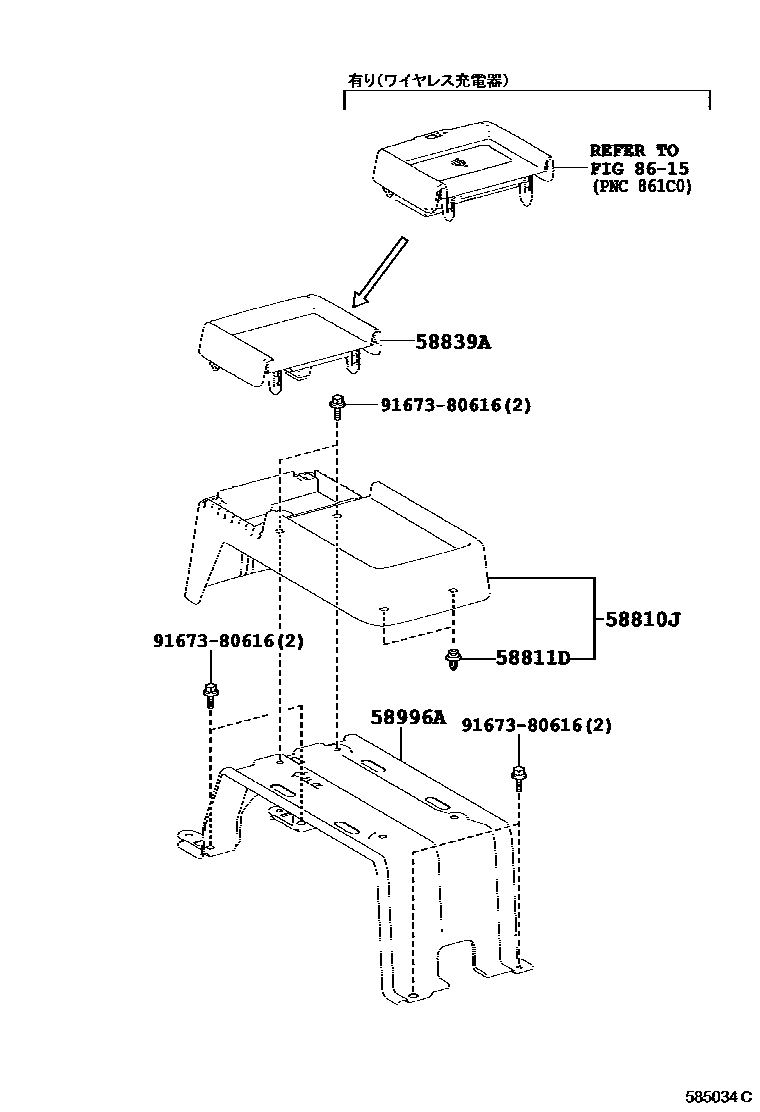

Toyota NOAH/VOXY/ESQUIRE — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1�������������������

58810JBOX ASSY, CONSOLE

main58810-28490-C0iZWR80..VOXY..X;ZWR80..GI,SI,V,ZS201402-201706

BLACK,TRIM0#,2#

main58810-28590-C0iZRR8#..GI201706

BLACK,TRIM2#

main58810-28600-C0iZWR80..G,SI201706

BLACK,TRIM0#,2#

main58810-28610-A0iZWR80..G201706

main58810-28610-C0iZWR80..GI,V,X,XI201706

58811DCLIP(FOR CONSOLE BOX)

main90467-10161×2iZWR80201402-201706

58839ACOVER, CONSOLE BOX HOLE

main58839-28070-C0iZWR80..SI,ZS;ZWR80..VOXY..X201402-201706

BLACK,TRIM0#,2#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-28030iZWR80201402-201706

8615

9167380616

main91673-80616

6 parts on this diagram · 4 diagrams in section
