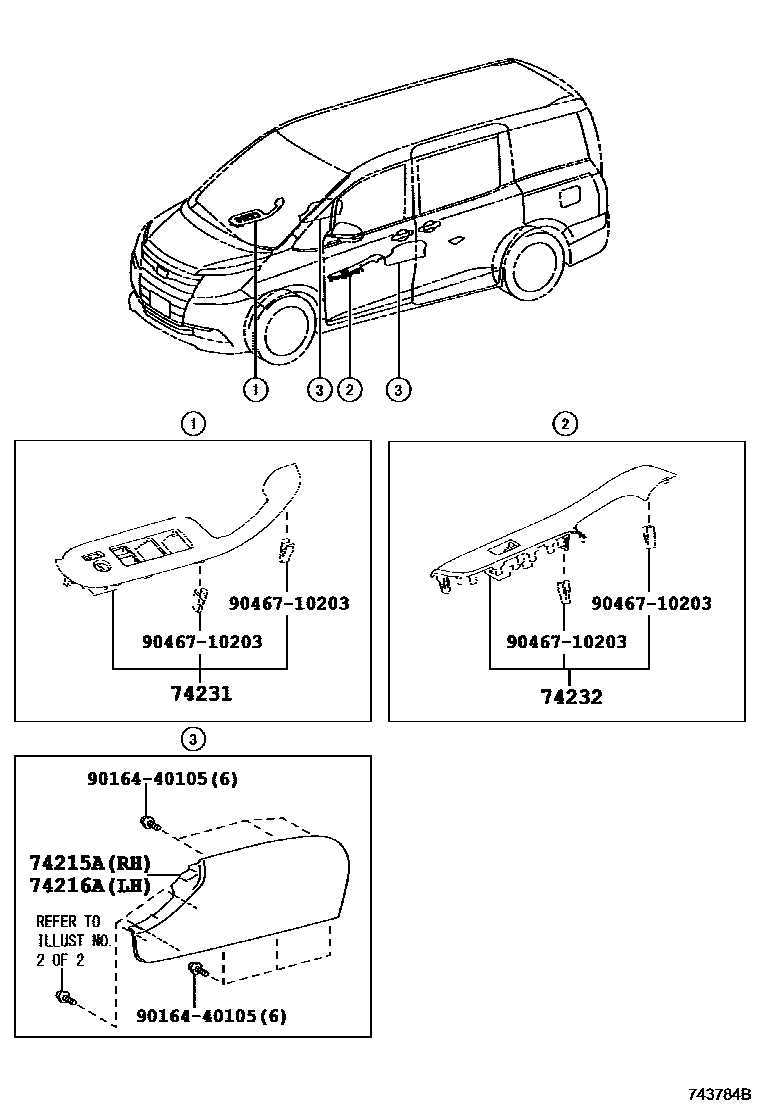

Toyota NOAH/VOXY/ESQUIRE — ARMREST & VISOR

0001 1������ 0002 1����� & ����������

74215ABASE, DOOR ARMREST RH

main74215-28010-C0iZRR8#,ZWR80..G201706

BLACK,TRIM0#,2#

74216ABASE, DOOR ARMREST, LH

main74216-28010-C0iZRR8#,ZWR80..G201403-201706

BLACK,TRIM0#,2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-28C10-A0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201706

IVORY,TRIM0#

main74231-28C10-C0iZRR8#,ZWR80..XI;ZRR80..07S..ZS..CBU201410-201706

BLACK,TRIM23,24

main74231-28C10-D0iZRR8#,ZWR80..GI201410-201601

BORDEAUX,TRIM22

main74231-28C10-E0iZRR8#,ZWR80..ZS201401-201706

ORANGE,TRIM21

main74231-28C10-E1iZRR8#,ZWR80..GI201601-201706

BURGUNDY,TRIM22

main74231-28C10-J0iZRR8#..XI,ZS;ZWR80..SI,XI,ZS201401-201706

DK.BLUE,TRIM20

main74231-28D10iZRR8#,ZWR80..G,GI,SI,V,XI,ZS201706-202112

main74231-28C50-A0iZRR80..G;ZRR85..07S..G201401-201706

main74231-28C50-C0iZRR80..GI;ZRR85..07S..GI201410-201706

main74231-28C50-D0iZRR80..GI;ZRR85..07S..GI201410-201601

main74231-28C50-E0iZRR8#..ZS..CBU201401-201706

main74231-28C50-E1iZRR80..GI;ZRR85..07S..GI201601-201706

main74231-28C50-J0iZRR8#..ZS..CBU201401-201706

main74231-28D30iZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU201706-202112

main74231-28D40iZRR8#,ZWR80..07S..GI201706-202005

main74231-28D50iZRR8#..07S..GI201706-202005

main74231-28D60iZRR8#,ZWR80..07S..GI201901-202112

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-28730-A0iZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)201401-201706

IVORY,TRIM0#

main74232-28730-C0iZRR8#,ZWR80..XI;ZRR80..07S..ZS..CBU201410-201706

BLACK,TRIM23,24

main74232-28730-D0iZRR8#,ZWR80..GI201410-201601

BORDEAUX,TRIM22

main74232-28730-E0iZRR8#,ZWR80..ZS201401-201706

ORANGE,TRIM21

main74232-28730-E1iZRR8#,ZWR80..GI201601-201706

BURGUNDY,TRIM22

main74232-28730-J0supersedes 74232-28730-J0iZRR8#..XI,ZS;ZWR80..SI,XI,ZS201401-201706

DK.BLUE,TRIM20

main74232-28810iZRR8#,ZWR80..G,GI,SI,V,XI,ZS201706-202112

main74232-28830iZRR8#,ZWR80..07S..GI201901-202112

main74232-28840iZRR8#,ZWR80..07S..GI201706-202005

9016440105

main90164-40105

9046710203

main90467-10203

6 parts on this diagram · 2 diagrams in section
