Toyota NOAH/VOXY/ESQUIRE — ABS & VSC
4102REAR AXLE SHAFT & HUB
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516CWIRE, SKID CONTROL SENSOR, RH
89516DWIRE, SKID CONTROL SENSOR, LH
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89630ACOMPUTER ASSY, 4WD
9017906274
main90179-06274
9155380616
main91553-80616
91671A0616
main91671-A0616
9167380616
main91673-80616
9415180600
main94151-80600

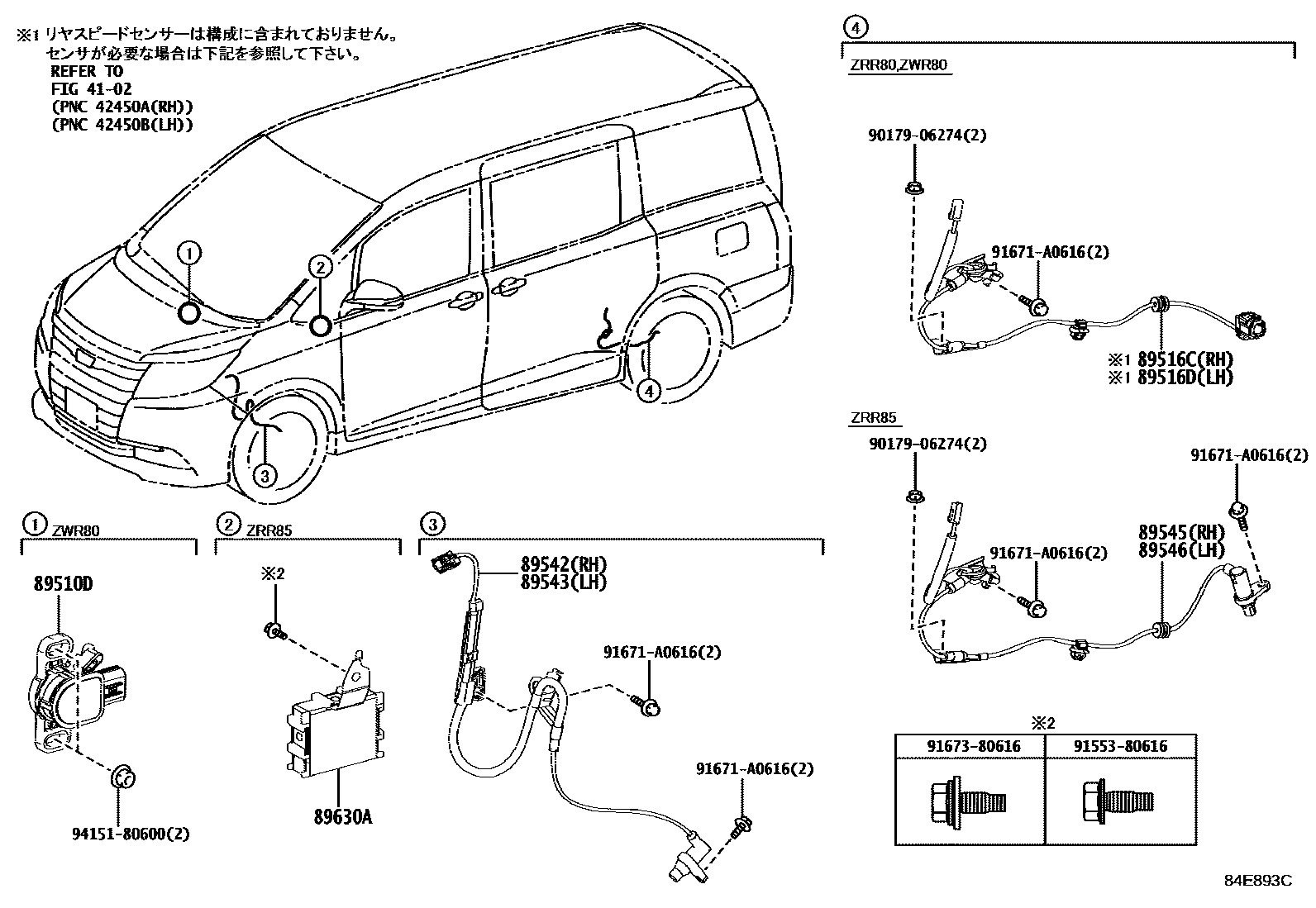

14 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota NOAH/VOXY/ESQUIRE
This section contains 14 genuine Toyota parts for the ABS & VSC system of the Toyota NOAH/VOXY/ESQUIRE. Key components include: REAR AXLE SHAFT & HUB, SENSOR ASSY, BRAKE PEDAL STROKE, WIRE, SKID CONTROL SENSOR, RH, WIRE, SKID CONTROL SENSOR, LH, SENSOR, SPEED, FRONT RH.
