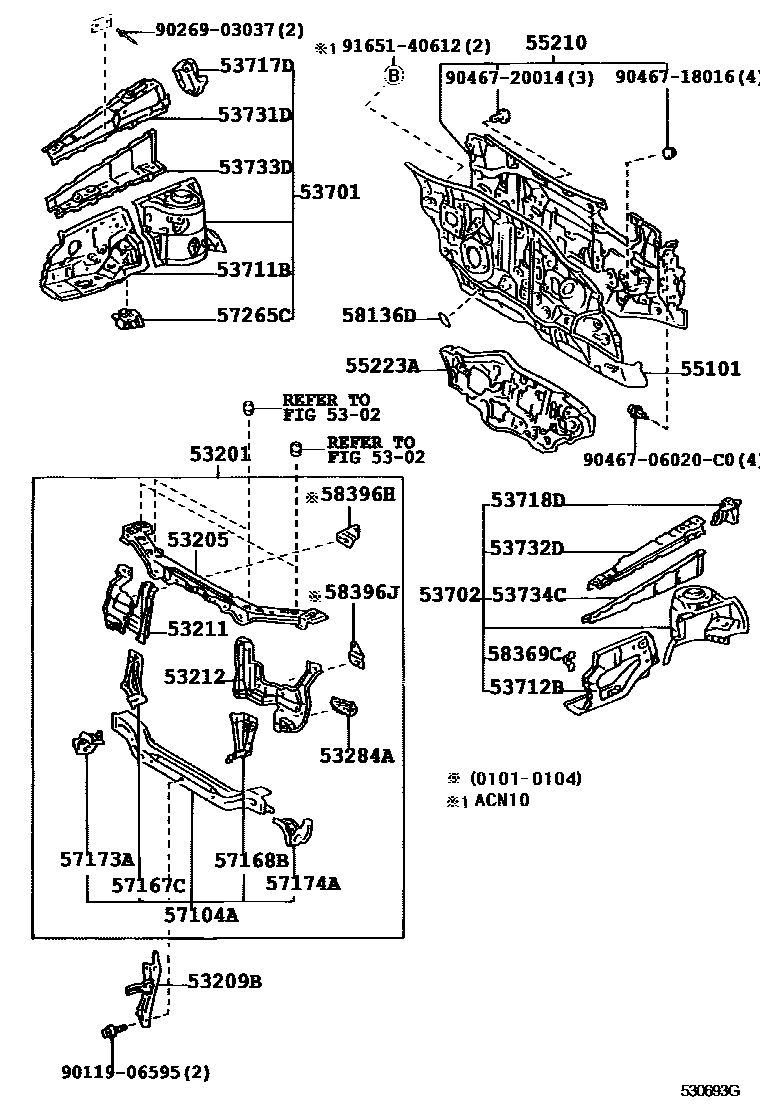

Toyota NADIA — FRONT FENDER APRON & DASH PANEL
5302HOOD & FRONT FENDER
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53284ARETAINER, FRONT BODY MOUNTING
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
57104AMEMBER SUB-ASSY, FRONT CROSS
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
57173AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH
57174AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57265CBRACKET, ENGINE MOUNTING, RH
58136DCOVER, DASH PANEL SERVICE HOLE
58369CBRACKET, FUEL TUBE, NO.3
58396HBRACKET, WIRING HARNESS MOUNTING
58396JBRACKET, WIRING HARNESS MOUNTING, NO.2
9011906595
main90119-06595
9026903037
main90269-03037
9046706020C0
main90467-06020C0
9046718016
main90467-18016
9046720014
main90467-20014
9165140612
main91651-40612
36 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota NADIA
This section contains 36 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota NADIA. Key components include: HOOD & FRONT FENDER, SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, RADIATOR, UPPER, BRACE SUB-ASSY, HOOD LOCK SUPPORT, SUPPORT, RADIATOR, RH.
