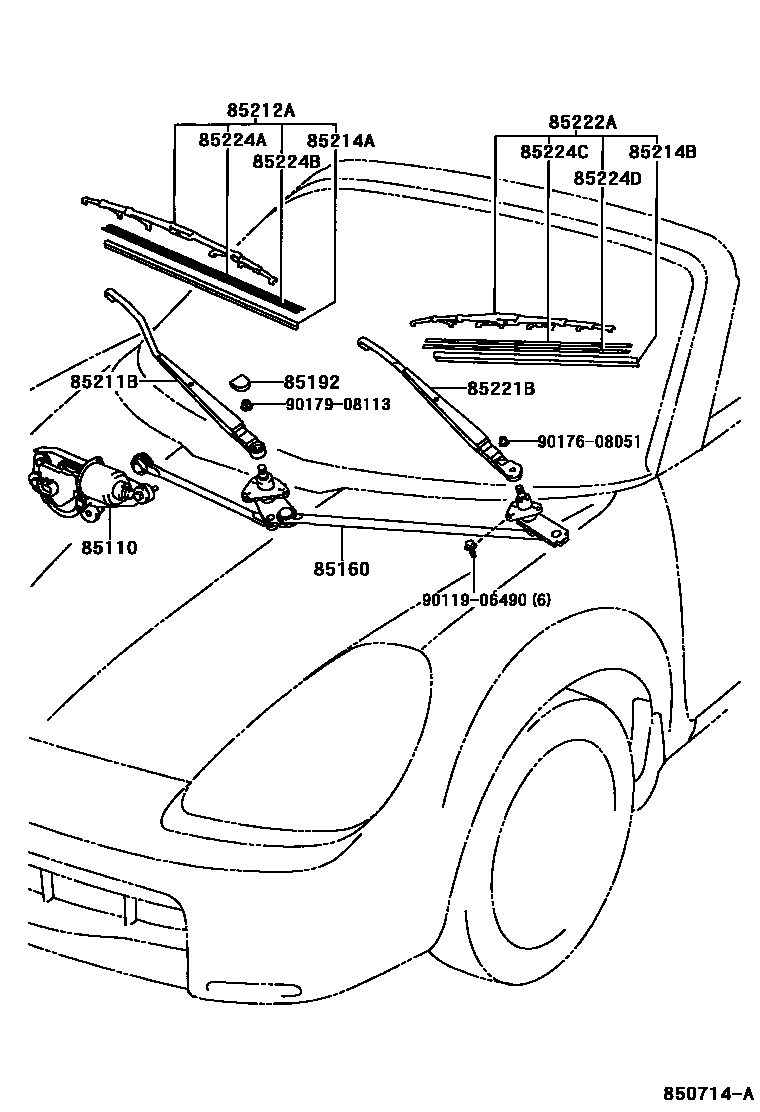

Toyota MR2 — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85070-17130iZZW30199912-200208

85160LINK ASSY, WINDSHIELD WIPER

main85150-17090iZZW30199912-200208

85192COVER, WINDSHIELD WIPER ARM

main85292-12020iZZW30199912-200208

85211BARM, FRONT WIPER, RH

main85211-17080iZZW30199912-200208

85212ABLADE, FR WIPER, RH

main85212-17140iZZW30199912-200208

sub85212-48040

main85212-53050iZZW30200406-200501

main85212-53051iZZW30200208-200405

85214ARUBBER, WIPER, RH

main85214-17050iZZW30199912-200208

main85214-48020iZZW30200208-200405

sub85214-53041

main85214-53040iZZW30200406-200501

sub85214-53041

85214BRUBBER, WIPER, LH

main85214-24050iZZW30200406-200501

sub85214-24051

main85214-30310iZZW30199912-200208

85221BARM, FRONT WIPER, LH

main85221-17070iZZW30199912-200208

85222ABLADE, FR WIPER, LH

main85222-52130iZZW30200406-200501

sub85222-52131

main85222-60170iZZW30200208-200405

sub85222-52131

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-35040iZZW30199912-200208

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-35040iZZW30199912-200208

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-10210iZZW30199912-200208

sub85224-10180

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-10210iZZW30199912-200208

sub85224-10180

9011906490

main90119-06490

9017608051

main90176-08051

9017908113

main90179-08113

16 parts on this diagram · 2 diagrams in section
