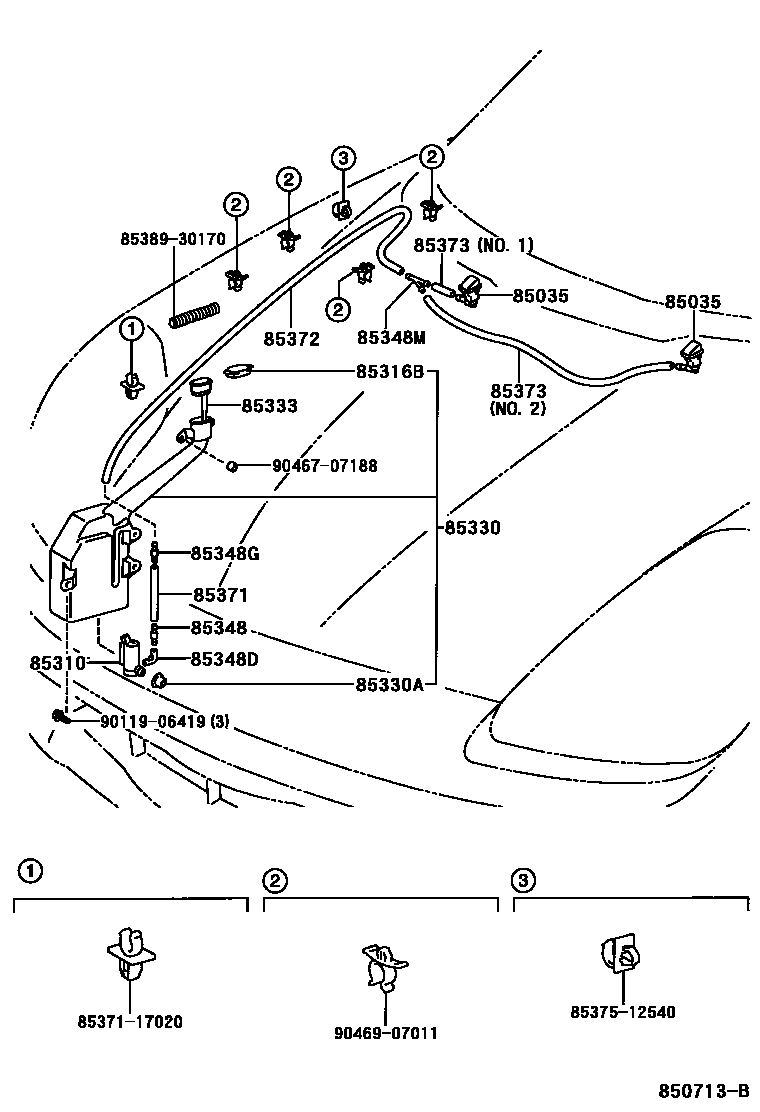

Toyota MR2 — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050i199912-200501

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-33020i199912-200501

85316BCAP, WASHER, INLET

main85316-42011i199912-200501

85330JAR ASSY, WINDSHIELD WASHER

main85315-17100i199912-200501

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199912-200501

85333FILTER, WINDSHIELD WASHER JAR

main85312-17010i199912-200501

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i199912-200501

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-16192i199912-200501

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i199912-200501

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250i199912-200501

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i199912-200501

L=1450(*H,L=140)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33968i199912-200501

L=1560

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i199912-200001

L=1450(*H,L=675),NO.2

main90099-33080i199912-200208

L=1450(*H,L=135),NO.1

main90099-33080i200001-200208

L=1450(*H,L=670),NO.2

main90099-33080i200208-200501

L=1450(*H,L=135),NO.1,NO.2

8537117020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-17020

8537512540HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-12540

8538930170PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-30170

9011906419

main90119-06419

9046707188

main90467-07188

9046907011

main90469-07011

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota MR2

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota MR2. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, CAP, WASHER, INLET, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
