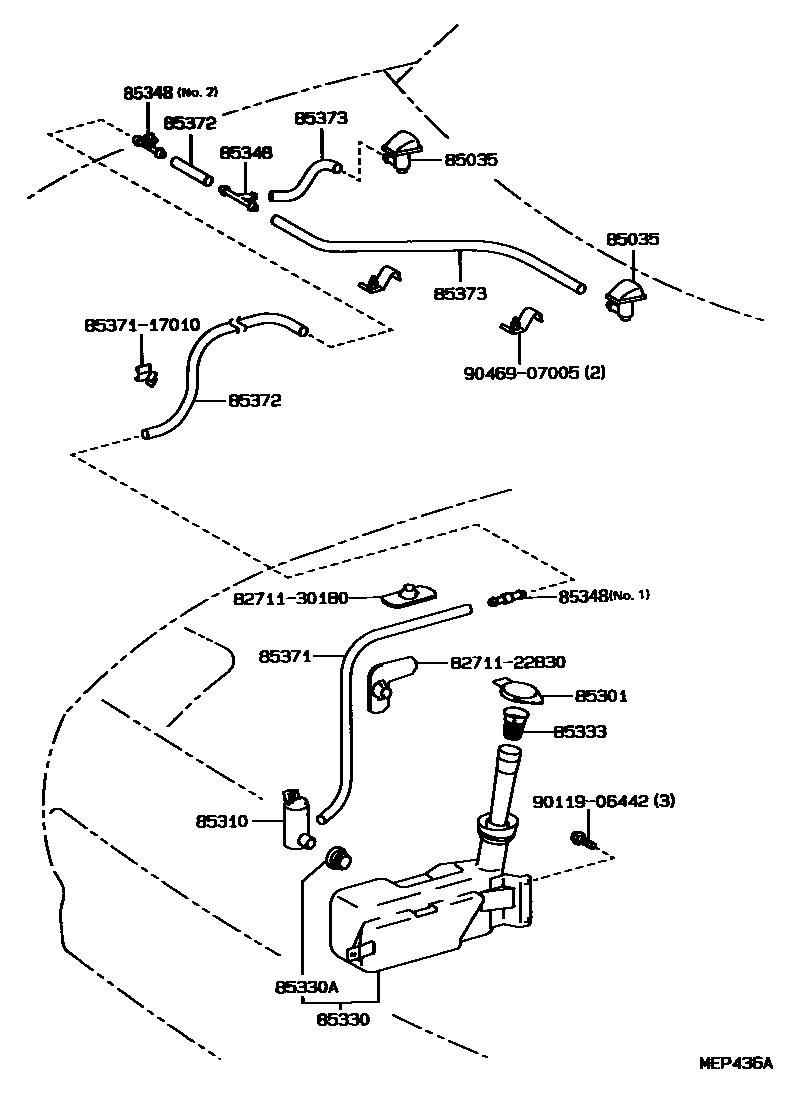

Toyota MR2 — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2iSW2#199205-199506

main85381-17020iSW2#199001-199205

RH

main85382-17020iSW2#199001-199205

LH

85301INLET SUB-ASSY, WASHER

main85301-17010iSW2#199001-199010

main85301-17020iSW2#..USA199010-199506

COLD SPEC

sub85301-17021

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-16050iSW2#..USA199001-199208

sub85330-60140

main85310-20190iSW2#..CND199208-199311

sub85330-33020

main85310-20210iSW2#..USA199208-199506

sub85330-10280

main85330-50020iSW2#..USA199001-199208

COLD SPEC

85330JAR ASSY, WINDSHIELD WASHER

main85315-17020iSW2#..USA199001-199506

main85315-17040iSW2#..USA199001-199010

COLD SPEC

main85315-17060iSW2#..CND199010-199311

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iSW2#199001-199506

85333FILTER, WINDSHIELD WASHER JAR

main85312-32020iSW2#..USA199010-199506

main85333-12470iSW2#..USA199001-199010

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iSW2#..USA199204-199311

2-WAY,NO.1

main85348-14390iSW2#199001-199506

3-WAY

main85349-14010iSW2#..USA199001-199204

2-WAY,NO.1

main85349-89122iSW2#..USA199001-199506

2-WAY,NO.1

main85375-17050iSW2#199001-199506

2-WAY,NO.2

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075iSW2#..CND199001-199311

L=1100

main90446-07001iSW2#..USA199001-199506

L=1800

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iSW2#199001-199506

L=1450

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iSW2#199001-199506

L=1450

8271122830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22830

8271130180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30180

8537117010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-17010

9011906442

main90119-06442

9046907005

main90469-07005

15 parts on this diagram · 1 diagram in section
