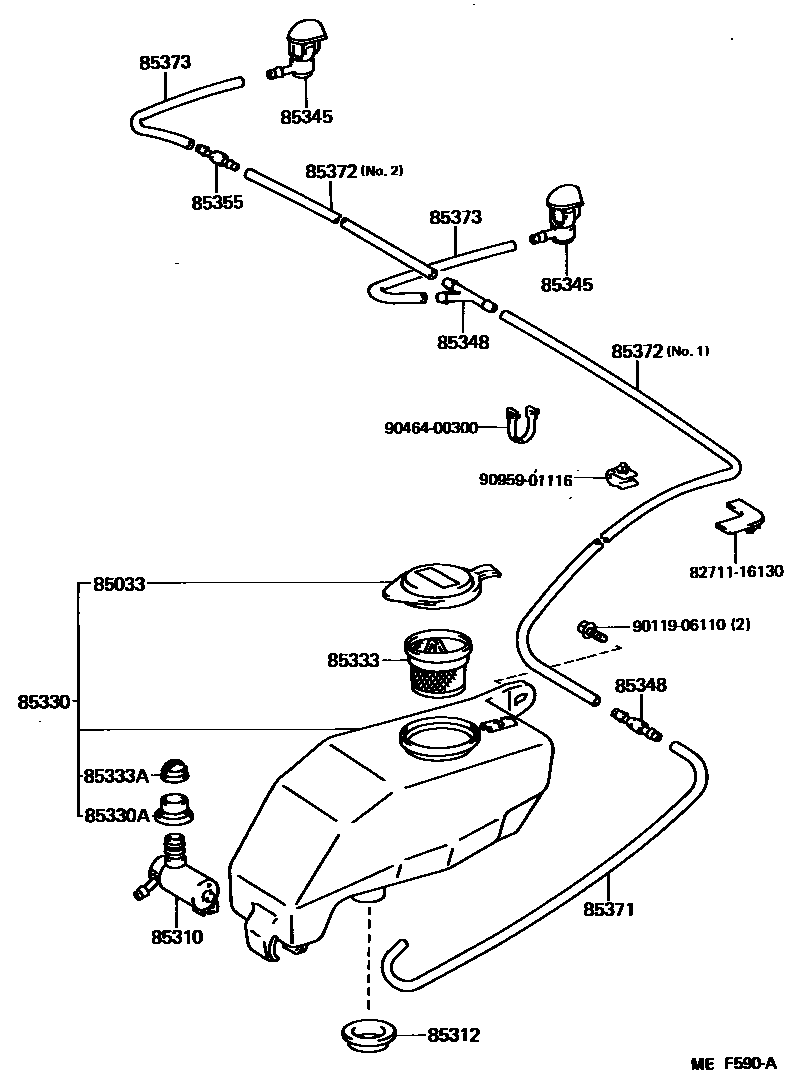

Toyota MR2 — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85332-17020iAW11198412-198912

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-17030iAW11198412-198912

sub85330-20410

85312PACKING, WINDSHIELD WASHER TANK

main85312-32010iAW11198412-198912

85330JAR ASSY, WINDSHIELD WASHER

main85331-17030iAW11198412-198912

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32103iAW11198412-198912

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010iAW11198412-198912

85333AFILTER, WINDSHIELD WASHER JAR, NO.2

main85333-20020iAW11198412-198912

85345NOZZLE, WINDSHIELD WASHER

main85035-17030×2iAW11198412-198803

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iAW11198412-198803

3-WAY

main85349-14010iAW11198412-198803

2-WAY

sub85334-22470

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iAW11198412-198912

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33068iAW11198412-198912

L=490

sub90099-33075

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iAW11198803-198912

L=1450

main90099-33084iAW11198412-198803

L=1450(*H,L=630),NO.1

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33081×2iAW11198412-198803

L=1450(*H,L=110)

8271116130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16130

9011906110

main90119-06110

9046400300

main90464-00300

9095901116

main90959-01116

17 parts on this diagram · 1 diagram in section
