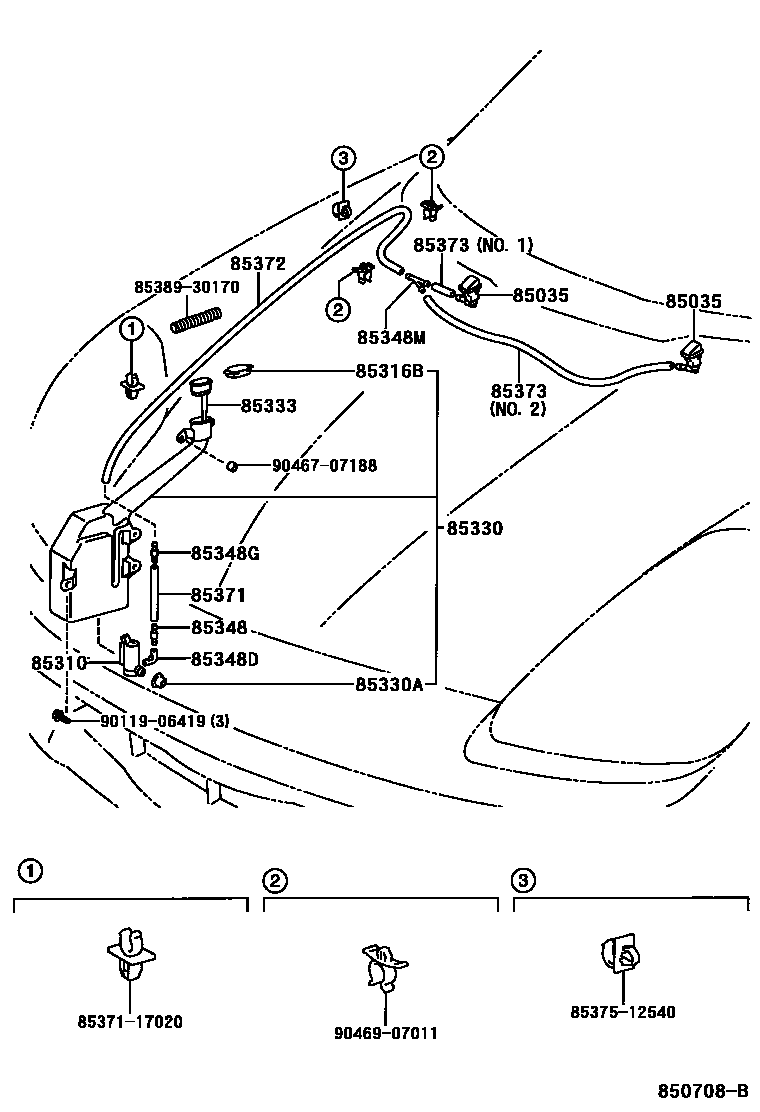

Toyota MR2 — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2iZZW30199912-200208

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iZZW30..ARL200208-200509

main85330-33020iZZW30..EUR199912-200208

85316BCAP, WASHER, INLET

main85316-42011iZZW30199912-200208

85330JAR ASSY, WINDSHIELD WASHER

main85315-17100iZZW30199912-200208

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iZZW30199912-200208

85333FILTER, WINDSHIELD WASHER JAR

main85312-17010iZZW30199912-200208

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iZZW30199912-200208

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iZZW30..ARL200008-200208

main85355-16192iZZW30..EUR200208-200509

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iZZW30199912-200208

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250iZZW30199912-200208

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iZZW30..EUR200208-200509

L=1450(*H,L=140)

main90446-07001iZZW30..ARL200208-200509

L=1800(*H,L=140)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33968iZZW30199912-200208

L=1560

sub90099-33803

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iZZW30199912-200001

L=1450(*H,L=675),NO.2

8537117020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-17020

8537512540HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-12540

8538930170PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-30170

9011906419

main90119-06419

9046707188

main90467-07188

9046907011

main90469-07011

19 parts on this diagram · 1 diagram in section
