Toyota MR2 — WATER PUMP

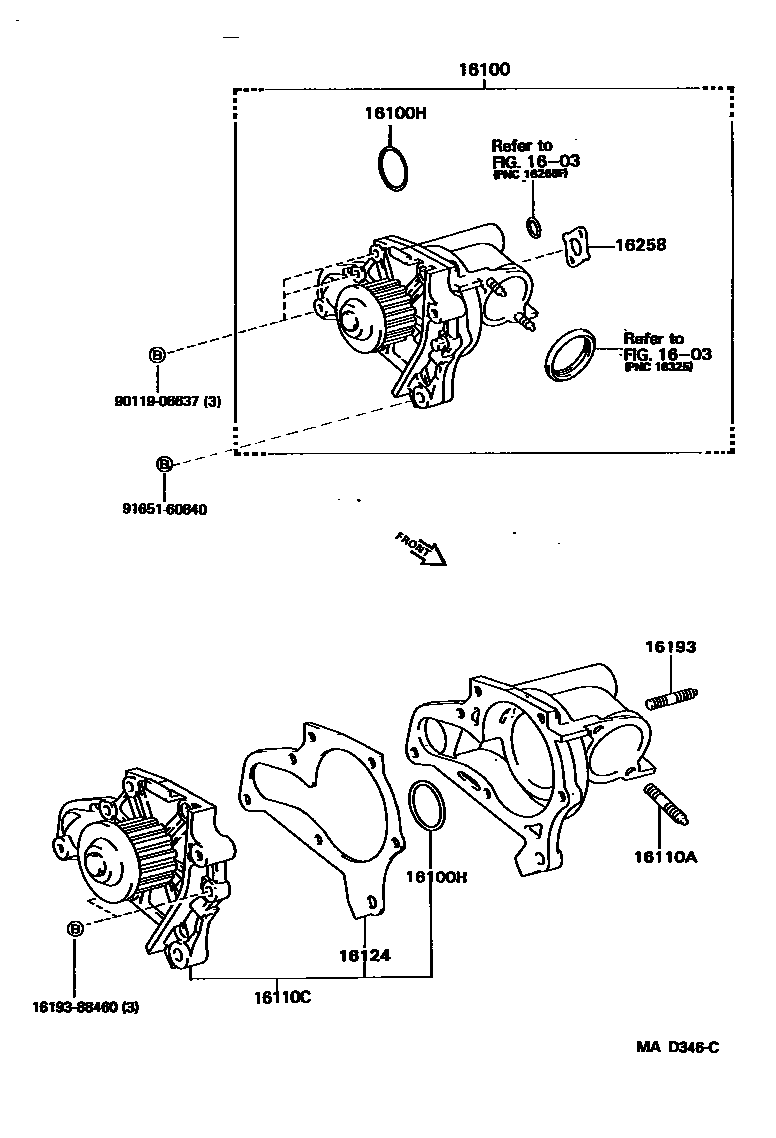

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-79126i199001-199506

main16100-79135i199001-199506

16100HRING, O(FOR WATER PUMP)

main90301-37005i199001-199506

16110ABOLT, STUD(FOR WATER OUTLET SETTING)

main16193-63010×2i199001-199506

16110CPUMP ASSY, WATER, W/O COVER

main16110-79025i199001-199506

main16110-79115i199001-199506

16124GASKET, WATER PUMP COVER

main16124-74020i199001-199309

main16124-88460i199309-199311

16193BOLT, STUD(FOR WATER PUMP COVER)

main90029-01500×2i199001-199506

16258GASKET(FOR HEATER RETURN)

main16258-74020i199001-199309

main16258-74021i199309-199506

1619388460BOLT, STUD(FOR WATER PUMP COVER)

main16193-88460

9011906637

main90119-06637

9165160840

main91651-60840

11 parts on this diagram · 2 diagrams in section

WATER PUMP for Toyota MR2

This section contains 14 genuine Toyota parts for the WATER PUMP system of the Toyota MR2. Key components include: RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, RING, O(FOR WATER PUMP), BOLT, STUD(FOR WATER OUTLET SETTING), PUMP ASSY, WATER, W/O COVER.
