Toyota MR2 — V-BELT
16361ABELT, V(FOR FAN & ALTERNATOR)
BANDO
W(POWER STEERING)
W(POWER STEERING)
27020BBELT, V(FOR ALTERNATOR)
W(POWER STEERING)
W(POWER STEERING)
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
L=875
MITSUBOSHI
L=890,MITSUBOSHI
BANDO
BANDO

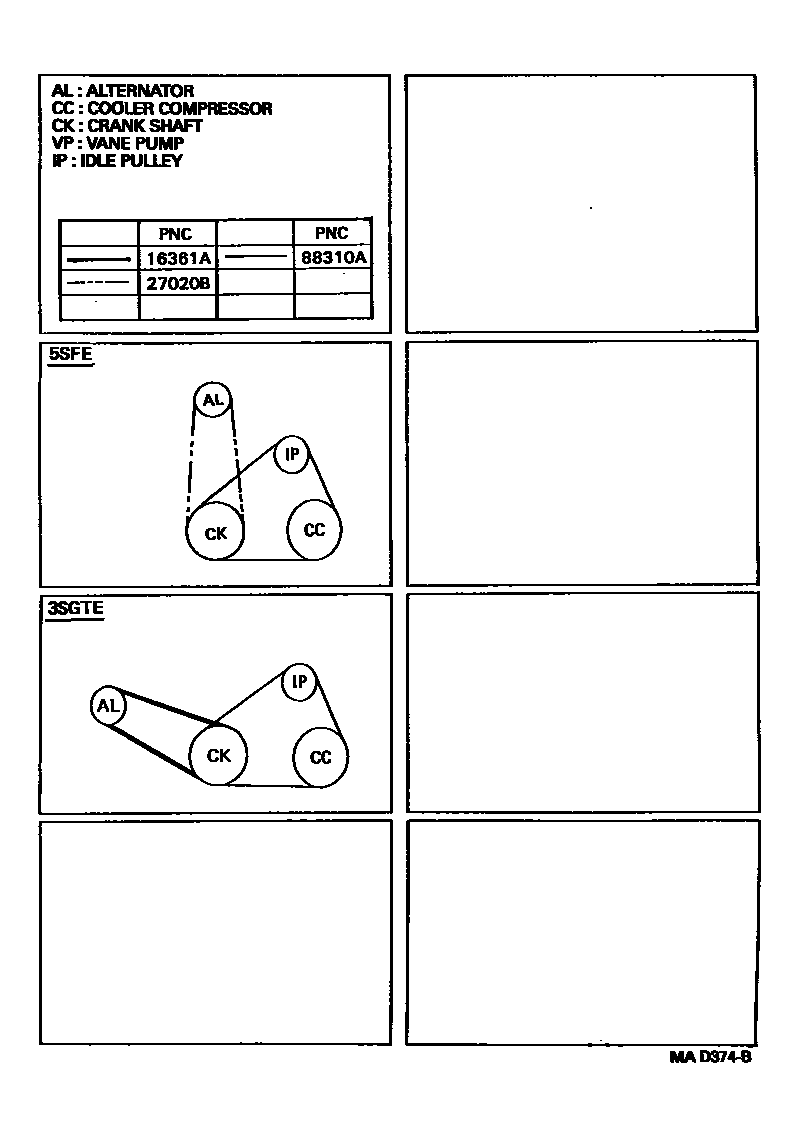

3 parts on this diagram · 1 diagram in section
V-BELT for Toyota MR2
This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota MR2. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR ALTERNATOR), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
