Toyota MR2 — STANDARD TOOL

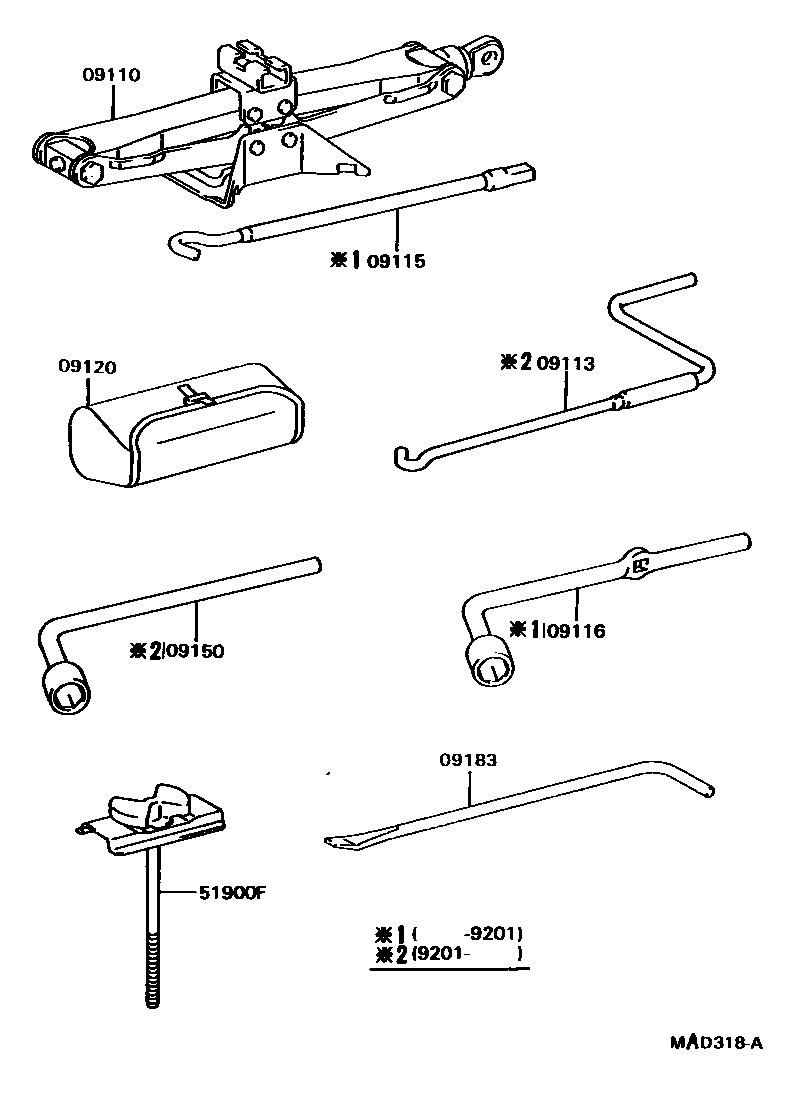

Parts diagram

09110JACK ASSY

main09111-17020i199001-199210

main09111-24030i199210-199506

09113HANDLE, JACK

main09113-32010i199201-199506

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030i199001-199201

09116LEVER, JACK HANDLE

main09116-16010i199001-199201

09120BAG, TOOL

main09120-17020i199001-199506

09150WRENCH, HUB NUT BOX

main09150-26010i199201-199506

09183WRENCH, WHEEL CAP

main09183-00010i199001-199311

51900FCARRIER ASSY, SPARE WHEEL

main51900-17020i199106-199111

main51900-17021i199111-199506

8 parts on this diagram · 1 diagram in section
