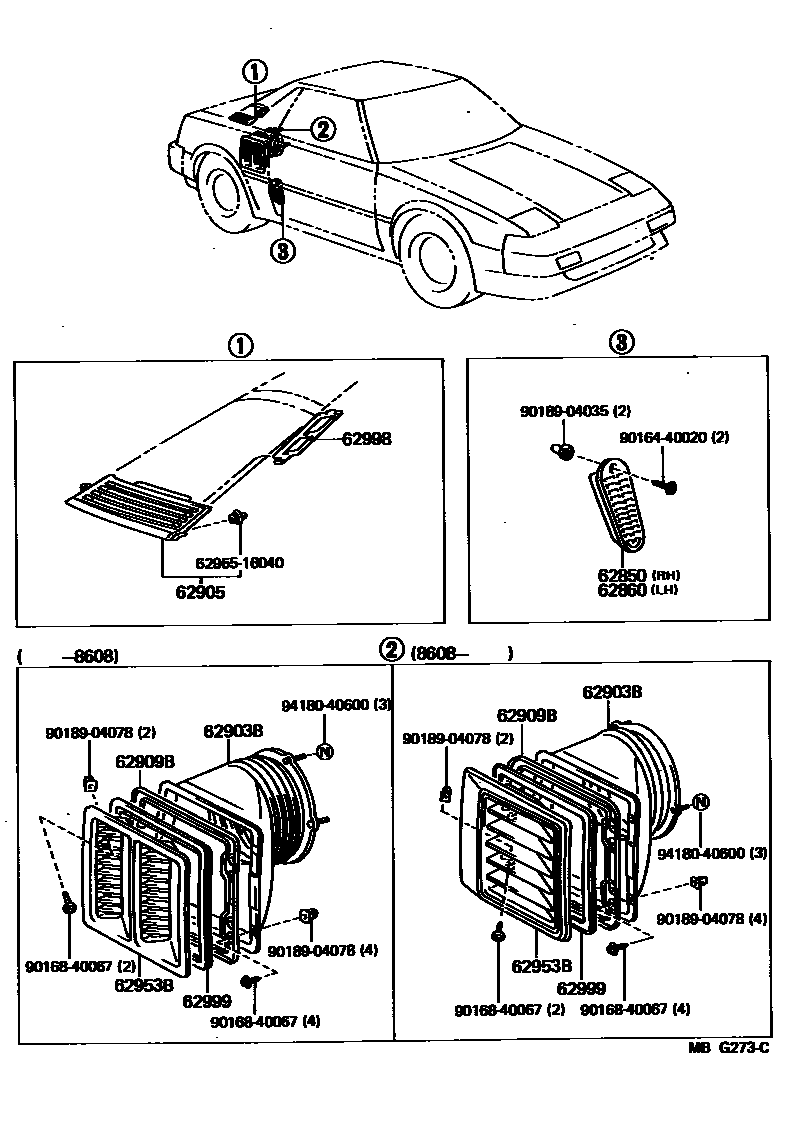

Toyota MR2 — ROOF SIDE VENTILATOR
62850VALVE ASSY, ROOM PRESSURE RELIEF, RH
62860VALVE ASSY, ROOM PRESSURE RELIEF, LH
62903BDUCT SUB-ASSY, QUARTER PANEL AIR INLET
62905LOUVER, QUARTER VENTILATION
RH
LH
62909BRETAINER SUB-ASSY, AIR INLET DUCT, OUTER
62953BGARNISH, QUARTER PANEL AIR INLET
BLACK-M,BLACK METALLIC,204
SUPER RED 2,SUPER RED 2,3E5
GRAY-M,SUPER SILVER M,21E
MEDIUM BLUE MICA,MEDIUM BLUE METALLIC,8E3
BEIGE-M,BEIGE METALLIC,4G8
BLUE MICA,DARK GREEN METALLIC,28B
SUPER WHITE 2,SUPER WHITE 2,040
BLACK,202
ORANGE MICA,3H5
GRAY M,167
LIGHT BLUE MICA M,8G2
RED MICA,3H4
SUPER WHITE 3,043
62998COVER SUB-ASSY, QUARTER VENT HOLE
RH
LH
62999PAD, AIR INLET GARNISH
6295516040SEAL, ROOF SIDE VENT
main62955-16040
9016440020
main90164-40020
9016840067
main90168-40067
9018904035
main90189-04035
9018904078
main90189-04078
9418040600
main94180-40600
14 parts on this diagram · 1 diagram in section
ROOF SIDE VENTILATOR for Toyota MR2
This section contains 14 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota MR2. Key components include: VALVE ASSY, ROOM PRESSURE RELIEF, RH, VALVE ASSY, ROOM PRESSURE RELIEF, LH, DUCT SUB-ASSY, QUARTER PANEL AIR INLET, LOUVER, QUARTER VENTILATION, RETAINER SUB-ASSY, AIR INLET DUCT, OUTER.
