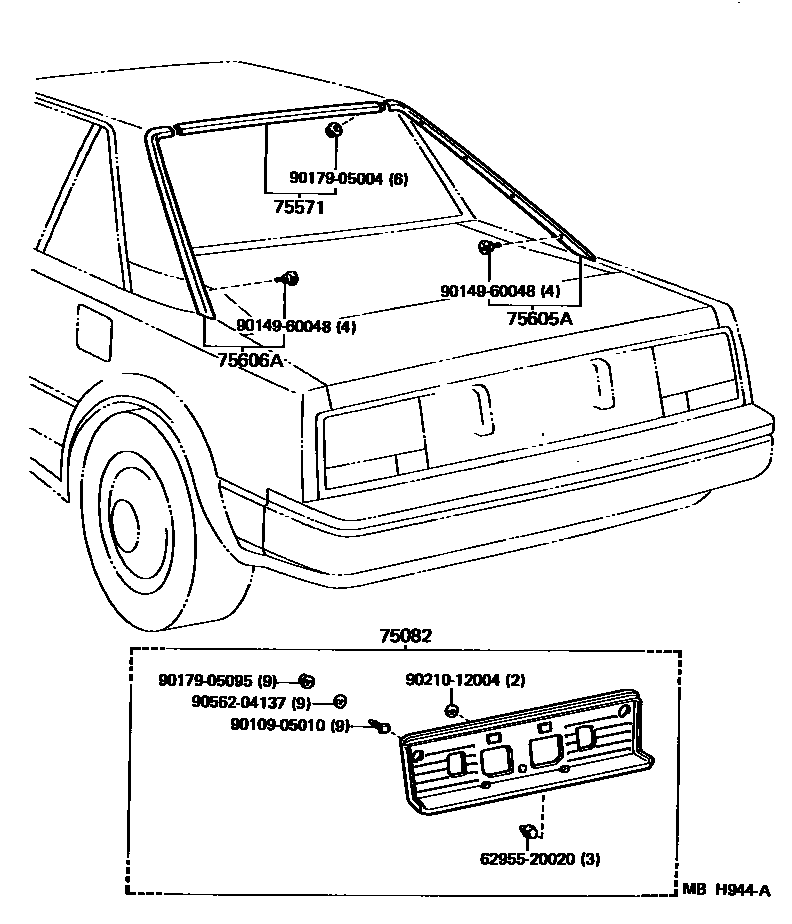

Toyota MR2 — REAR MOULDING
75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
W/RR VISOR
W/RR VISOR
75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
W(SPOILER)
W/RR VISOR
6295520020SEAL, ROOF SIDE VENT
main62955-20020
9010905010
main90109-05010
9014960048
main90149-60048
9017905004
main90179-05004
9017905095
main90179-05095
9021012004
main90210-12004
9056204137
main90562-04137
11 parts on this diagram · 2 diagrams in section
REAR MOULDING for Toyota MR2
This section contains 11 genuine Toyota parts for the REAR MOULDING system of the Toyota MR2. Key components include: PANEL SUB-ASSY, LOWER BACK FINISH, CENTER, MOULDING, BACK WINDOW, OUTSIDE UPPER, MOULDING SUB-ASSY, QUARTER OUTSIDE, RH, MOULDING SUB-ASSY, QUARTER OUTSIDE, LH, SEAL, ROOF SIDE VENT.
