Toyota MR2 — PARTIAL ENGINE ASSEMBLY

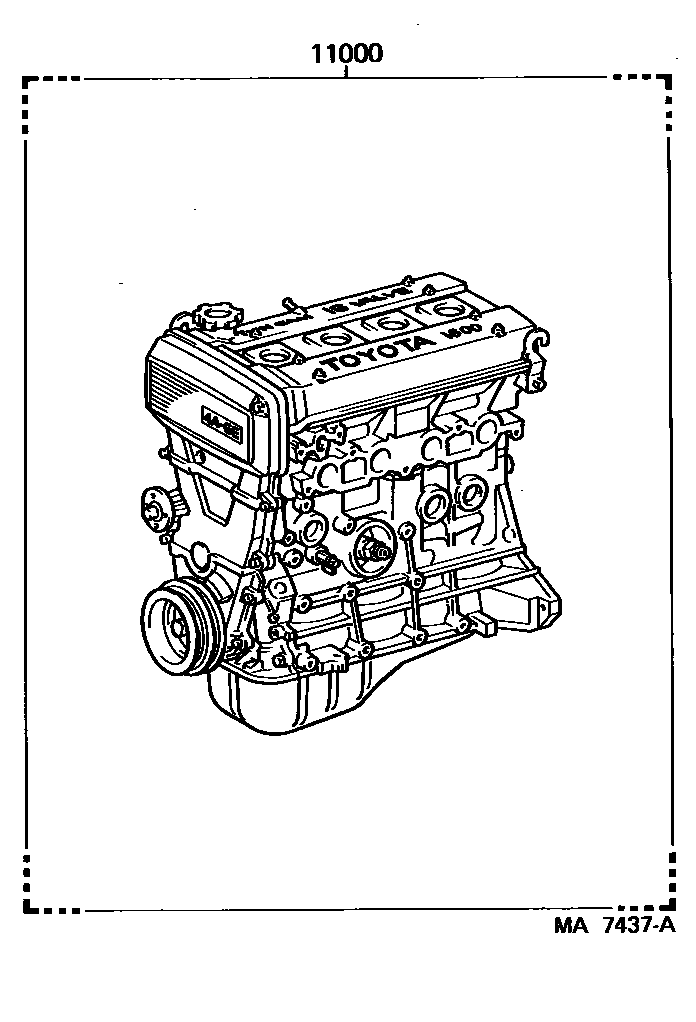

11000ENGINE ASSY, PARTIAL

main19000-16160i4AGELC..AW11198412-198803

sub19000-16161

main19000-16170i4AGELC..AW11198412-198803

W/OIL COOLER OR *AAC

sub19000-16171

main19000-16340i4AGZE..AW11..5F198708-198803

sub19000-16341

main19000-16350i4AGZE..AW11..4FC198708-198803

sub19000-16351

main19000-16640i4AGELC..AW11..5F198803-198912

sub19000-16641

main19000-16650i4AGELC..AW11..4FC198803-198912

W(ENGINE OIL COOLER & AIR CONDITIONER)

sub19000-16651

main19000-16680i4AGZE..AW11..5F198803-198912

sub19000-16681

main19000-16690i4AGZE..AW11..4FC198803-198912

sub19000-16691

1 parts on this diagram · 1 diagram in section
