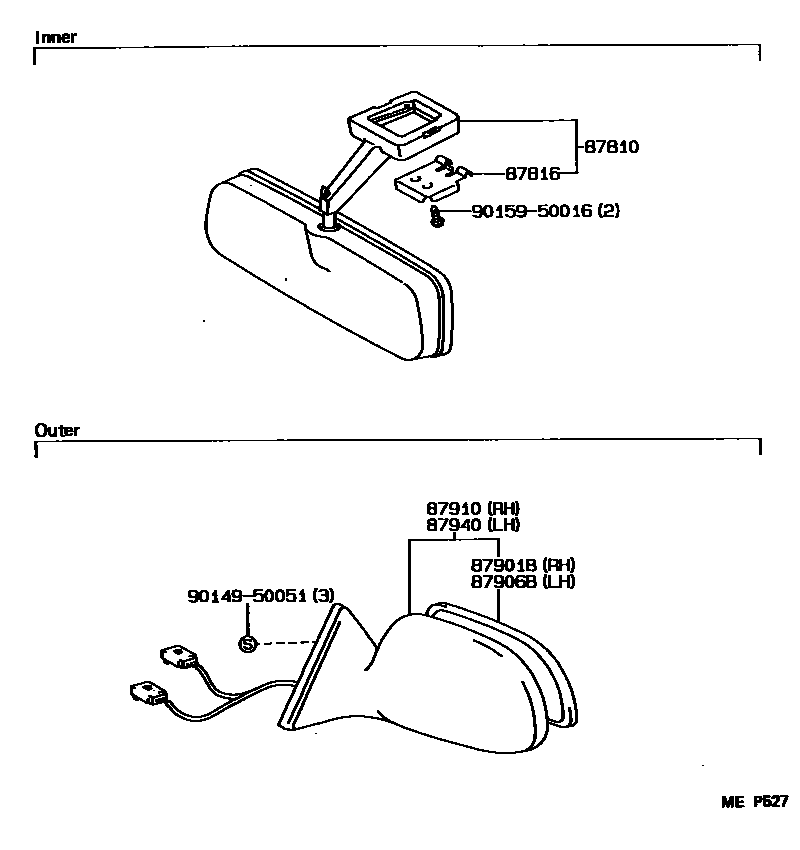

Toyota MR2 — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
RED,TRIM3#
DARK BLUE,TRIM8#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
87816SPRING, INNER REAR VIEW MIRROR
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
*RCM
*RCM,BLACK,202
SUPER RED 3,3J6
*RCM,BLUE METALLIC,8H3
*RCM,DARK TURQUOISE MICA,742
*RCM,SUPER WHITE 3,043
SUPER BRIGHT YELLOW,567
BLUEISH GRAY ARGENTU,187
BL.GRAY AMC,187
BLACK,202
SUPER WHITE 2,040
SUPER RED 2,3E5
SUPER BRIGHT YELLOW,576
DK.GREEN MICA,6M1
TURQUOISE M.M.,746
MEDIUM BLUE M.M.,8J2
STRONG BLUE M,8B6
87940MIRROR ASSY, OUTER REAR VIEW, LH
*RCM
*RCM,BLACK,202
SUPER RED 3,3J6
BLUE METALLIC,8H3
*RCM,DARK TURQUOISE MICA,742
*RCM,SUPER WHITE 3,043
SUPER BRIGHT YELLOW,567
BLUEISH GRAY ARGENT,187
BL.GRAY AMC,187
BLACK,202
SUPER WHITE 2,040
SUPER RED 2,3E5
SUPER BRIGHT YELLOW,576
DK.GREEN MICA,6M1
TURQUOISE M.M.,746
MEDIUM BLUE M.M.,8J2
STRONG BLUE M,8B6
9014950051
main90149-50051
9015950016
main90159-50016
8 parts on this diagram · 1 diagram in section
