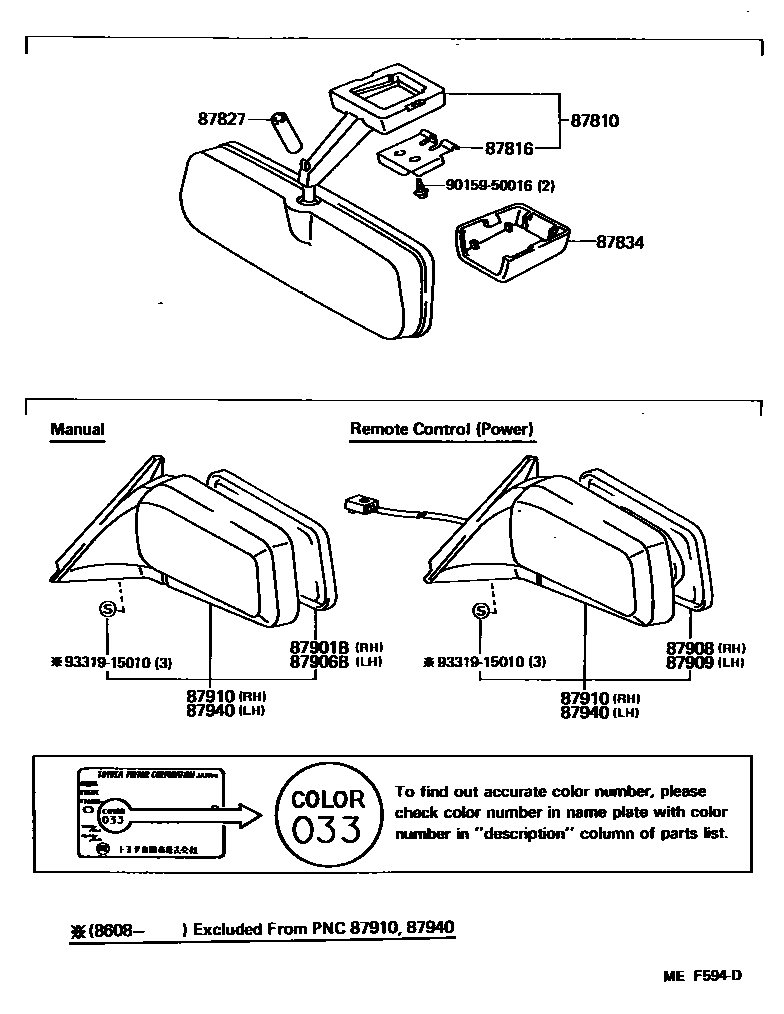

Toyota MR2 — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLACK,BLACK,TRIM1#
BLACK,BLACK,TRIM1#
RED,TRIM3#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
L=44
L=47
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
BLACK,TRIM2#
BLACK,TRIM2#
RED,TRIM3#
LIGHT GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
W(*RCM)
BLACK METALLIC,204
SUPER RED,SUPER RED METALLIC,3E5
GRAY METALLIC,GRAY METALLIC,167 ,21E
BLUE MICA,BLUE MICA,8E3
SUPER WHITE,040
BLACK,202
ORANGE MICA,ORANGE MICA,3H5
LIGHT BLUE MICA M,8G2
SUPER WHITE 3,043
RED MICA,3H4
*RCM,BLACK-M,BLACK METALLIC,204
*RCM,SUPER RED METALLIC,SUPER RED METALLIC,3E5
*RCM,GRAY-M,GRAY METALLIC,21E
*RCM,BLUE MICA,BLUE MICA,8E3
*RCM,SUPER WHITE,SUPER WHITE,040
*RCM,BLACK,BLACK,202
*RCM,ORANGE MICA,ORANGE MICA,3H5
*RCM,LIGHT BLUE MICA M,LIGHT BLUE MICA M,8G2
*RCM,SUPER WHITE 3,SUPER WHITE 3,043
*RCM,RED MICA,RED MICA,3H4
REMOTE CONTROL TYPE
87940MIRROR ASSY, OUTER REAR VIEW, LH
W(*RCM)
BLACK-M,BLACK METALLIC,204
SUPER RED,3E5
GRAY METALLIC,167 ,21E
BLUE MICA,BLUE MICA,8E3
SUPER WHITE,SUPER WHITE,040
BLACK,202
ORANGE MICA,3H5
LIGHT BLUE MICA M,8G2
SUPER WHITE 3,043
RED MICA,3H4
*RCM,BLACK-M,BLACK METALLIC,204
*RCM,SUPER RED METALLIC,SUPER RED,3E5
*RCM,GRAY METALLIC,GRAY METALLIC,167 ,21E
*RCM,BLUE MICA,BLUE MICA,3H5
*RCM,SUPER WHITE,SUPER RED,040
*RCM,BLACK,BLACK,202
*RCM,ORANGE MICA,ORANGE MICA,3H5
*RCM,LIGHT BLUE MICA M,LIGHT BLUE MICA M,8G2
SUPER WHITE,043
*RCM,RED MICA,RED MICA,3H4
REMOTE CONTROL TYPE
9015950016
main90159-50016
9331915010
main93319-15010
12 parts on this diagram · 1 diagram in section
