Toyota MR2 — METER

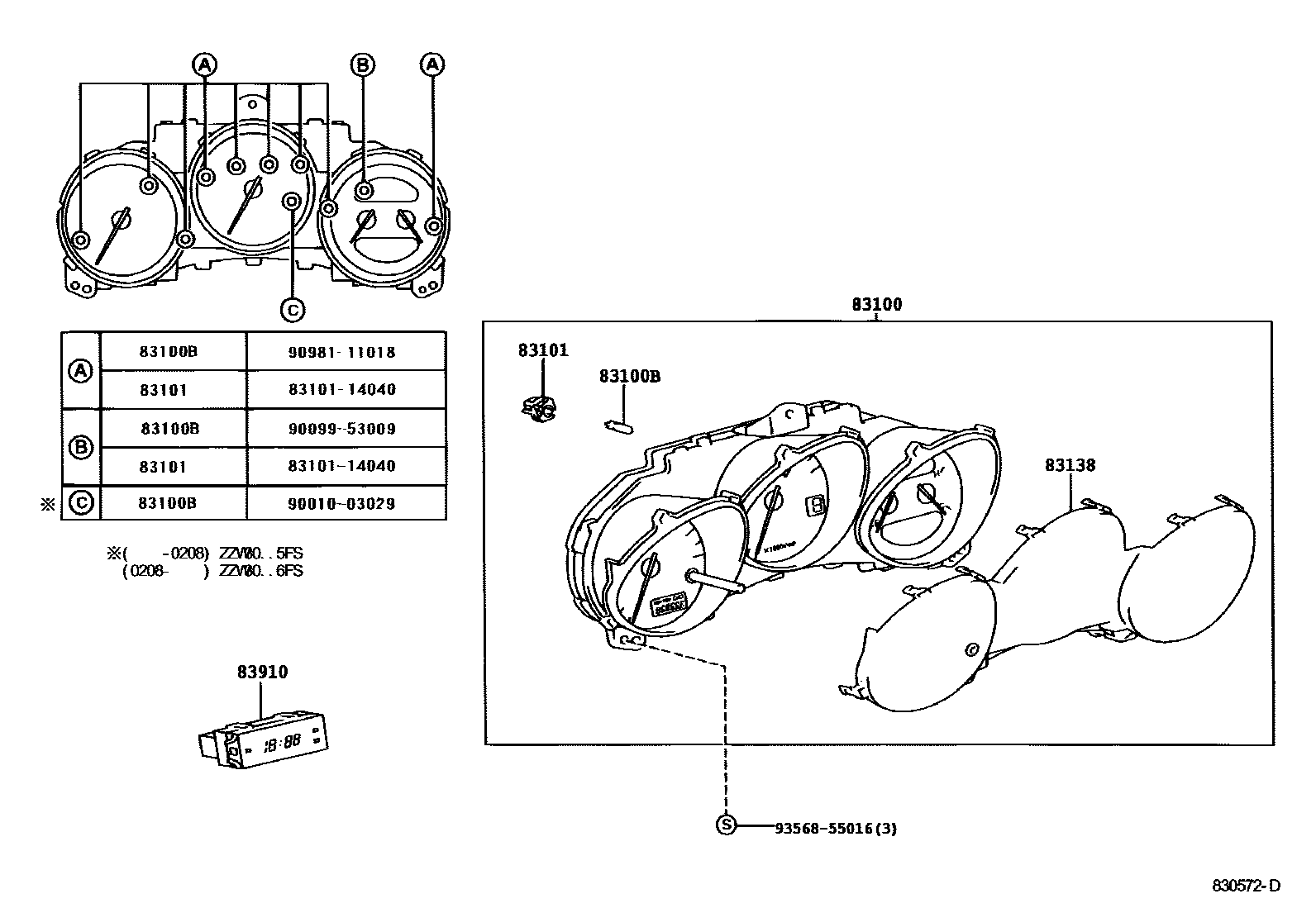

83100METER ASSY, COMBINATION

main83800-17030iZZW30..5FS200008-200208

main83800-17040iZZW30..5F199912-200208

main83800-17120iZZW30..6FS200208-200501

main83800-17130iZZW30..5F200208-200501

83100BBULB, COMBINATION METER, NO.1

main90010-03029iZZW30..5FS200008-200208

14V 1.4W,W(CAP),TYPE C:REFER TO ILLUSTRATION

main90099-53009iZZW30200208-200501

14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION

main90981-11018iZZW30199912-200208

12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iZZW30199912-200208

83138GLASS, SPEEDOMETER

main83852-17010iZZW30199912-200208

83910CLOCK ASSY

main83910-17050iZZW30199912-200208

9356855016

main93568-55016

6 parts on this diagram · 1 diagram in section
