Toyota MR2 — METER

83100METER ASSY, COMBINATION

main83800-17050i200008-200208

150MPH(240KM/H)

main83800-17060i199912-200208

150MPH(240KM/H)

main83800-17070i200008-200208

240KM/H

main83800-17080i199912-200208

240KM/H

main83800-17090i200008-200208

240KM/H

main83800-17140i200208-200401

150MPH(240KM/H)

main83800-17141i200401-200509

150MPH(240KM/H)

main83800-17150i200208-200401

150MPH(240KM/H)

main83800-17151i200401-200509

150MPH(240KM/H)

main83800-17160i200208-200401

240KM/H

main83800-17161i200401-200509

240KM/H

main83800-17170i200208-200401

240KM/H

main83800-17171i200401-200509

240KM/H

main83800-17180i200208-200509

240KM/H

83100BBULB, COMBINATION METER, NO.1

main90010-03029i200008-200509

14V 1.4W,W(CAP),TYPE C:REFER TO ILLUSTRATION

main90099-53009i199912-200509

14V0.84W W/O(SOCKET),TYPE B:REFER TO ILLUSTRATION

main90981-11018i199912-200509

12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040i199912-200509

83138GLASS, SPEEDOMETER

main83852-17010i199912-200509

83910CLOCK ASSY

main83910-17050i199912-200509

9356855016

main93568-55016

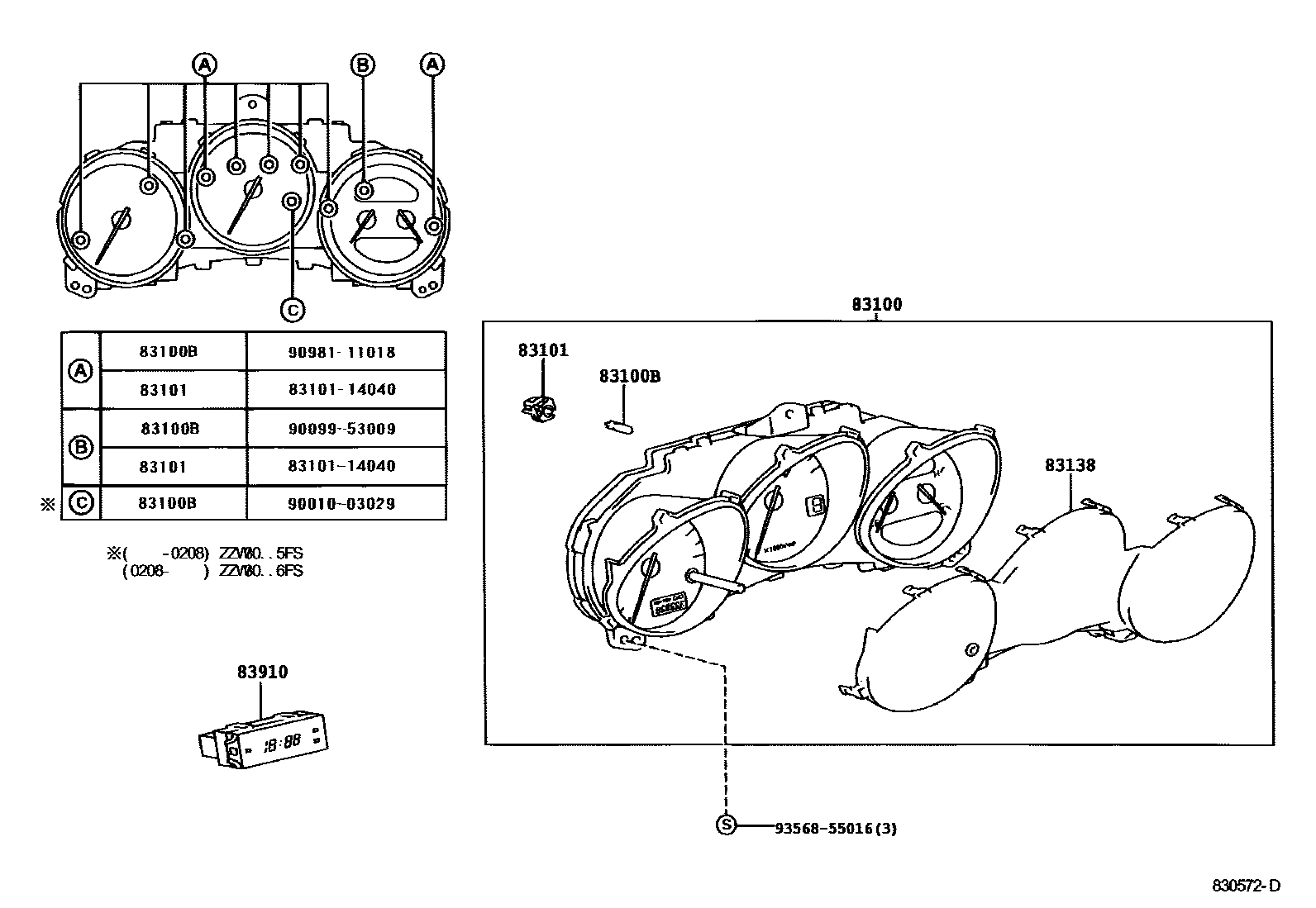

6 parts on this diagram · 1 diagram in section

METER for Toyota MR2

This section contains 6 genuine Toyota parts for the METER system of the Toyota MR2. Key components include: METER ASSY, COMBINATION, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, GLASS, SPEEDOMETER, CLOCK ASSY.
