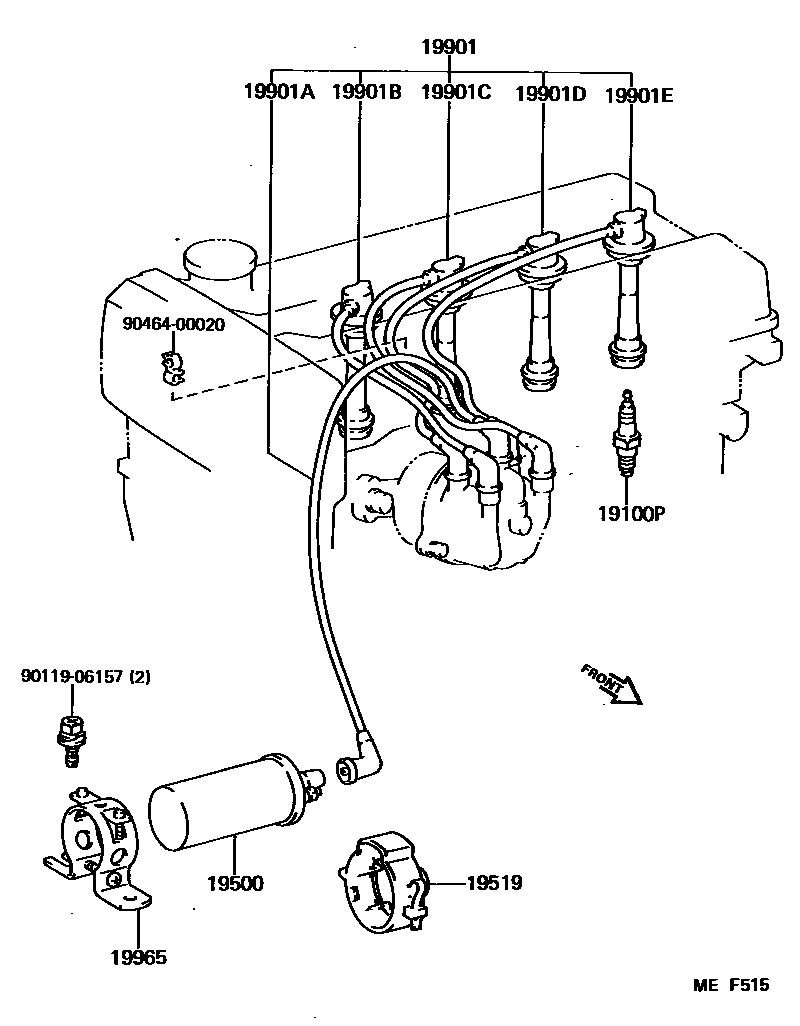

Toyota MR2 — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01121×4i198412-198803

PQ16R,PQ16R

main90919-01127×4i198708-198803

PQ20R,PQ20R

19500COIL ASSY, IGNITION

main90919-02113i198412-198912

19519COVER, IGNITION COIL

main19519-28020i198412-198912

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21368i198412-198708

main90919-21412i198708-198912

main90919-21413i198708-198912

19901ACORD, COIL RESISTIVE

main90919-13243i198412-198708

main90919-13275i198708-198912

main90919-13277i198708-198912

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12602i198412-198708

main90919-12737i198708-198912

main90919-12767i198708-198912

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12603i198412-198708

main90919-12738i198708-198912

main90919-12768i198708-198912

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12604i198412-198708

main90919-12739i198708-198912

main90919-12769i198708-198912

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12605i198412-198708

main90919-12740i198708-198912

main90919-12770i198708-198912

19965BAND, IGNITION COIL, NO.1

main90919-03093i198708-198912

main90919-03098i198412-198803

9011906157

main90119-06157

9046400020

main90464-00020

12 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota MR2

This section contains 12 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota MR2. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, COVER, IGNITION COIL, CORD SET, COIL & SPARK, W/RESISTIVE, CORD, COIL RESISTIVE.
