Toyota MR2HORN

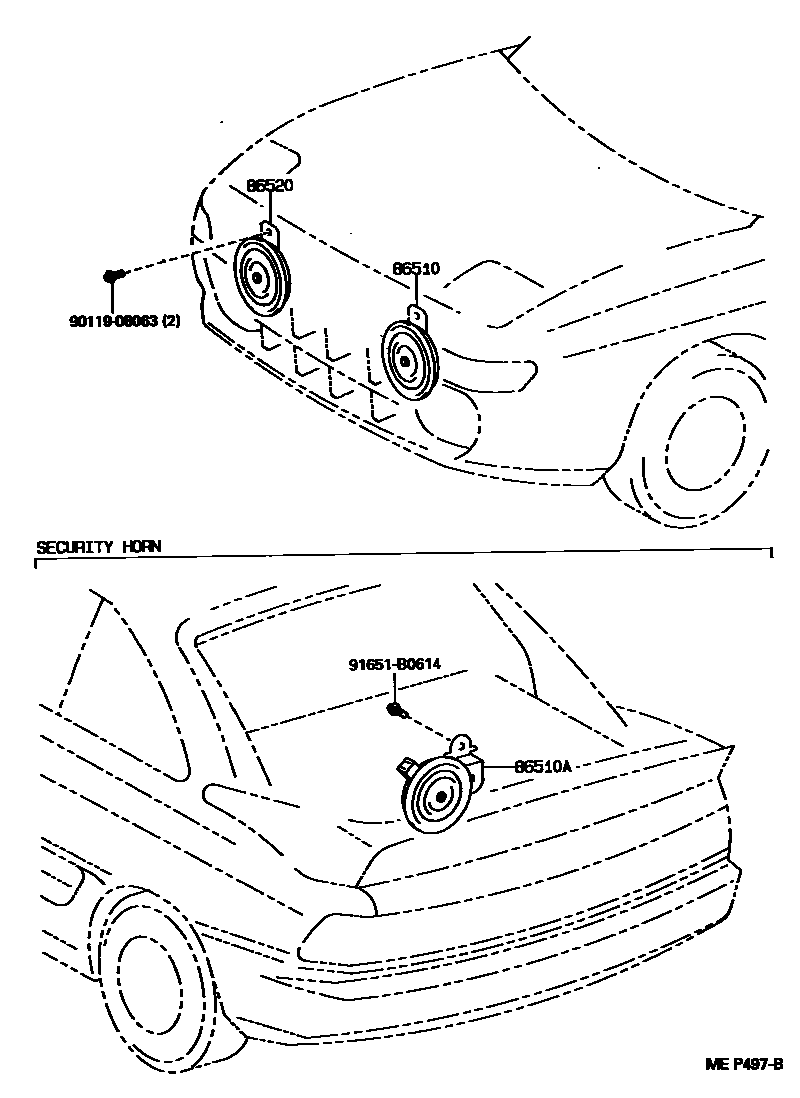

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-17090i199001-199506
86510AHORN ASSY, SECURITY
main86510-17070i199001-199506
86520HORN ASSY, LOW PITCHED
main86520-17090i199001-199506
9011908063
91651B0614

5 parts on this diagram · 1 diagram in section

HORN for Toyota MR2

This section contains 5 genuine Toyota parts for the HORN system of the Toyota MR2. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED.
