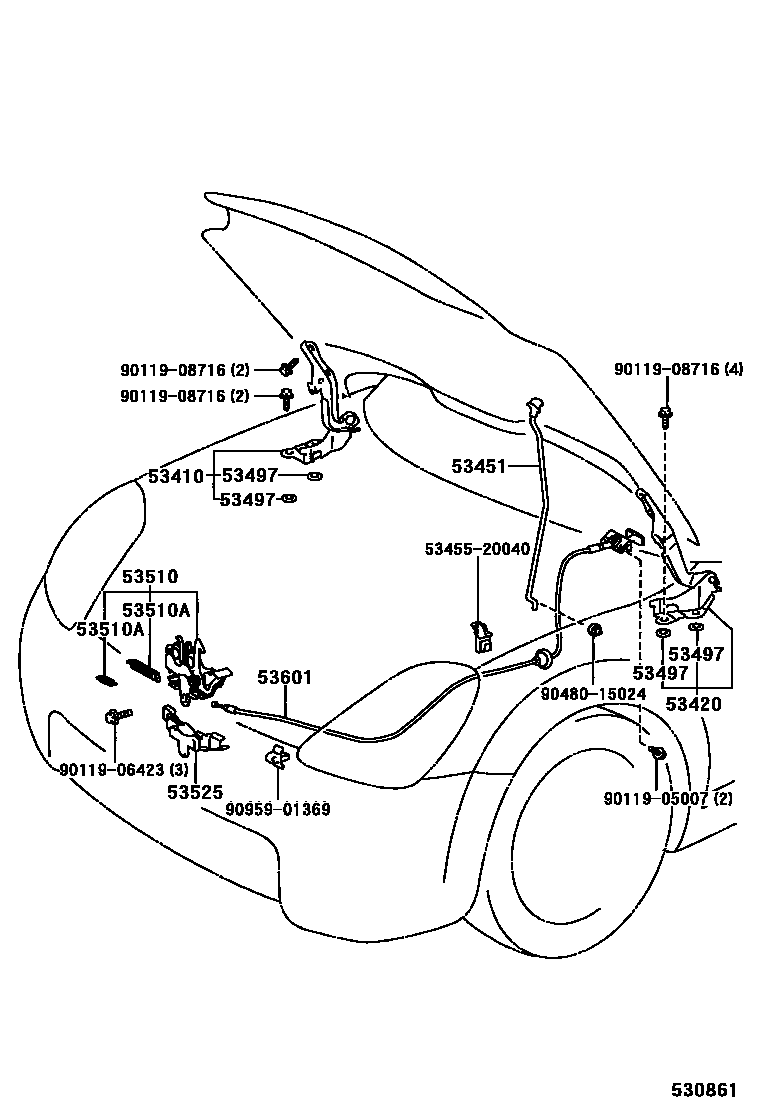

Toyota MR2 — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-17050i199912-200208

53420HINGE ASSY, HOOD, LH

main53420-17050i199912-200208

53451ROD, HOOD SUPPORT

main53440-17030i199912-200208

53497PAD, HOOD HINGE, NO.1

main53497-12050×4i199912-200208

T=1.0

main53497-12070×4i199912-200208

T=0.5

main53497-42010×4i200208-200501

T=0.5

53510LOCK ASSY, HOOD

main53510-17100i199912-200208

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050i199912-200208

WD=0.9,CW=20.5

main90506-18080i199912-200208

WD=1.8,CW=19

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-32040i199912-200208

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-17020i199912-200208

5345520040CLAMP, HOOD SUPPORT ROD

main53455-20040

9011905007

main90119-05007

9011906423

main90119-06423

9011908716

main90119-08716

9048015024

main90480-15024

9095901369

main90959-01369

14 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota MR2

This section contains 14 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota MR2. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, PAD, HOOD HINGE, NO.1, LOCK ASSY, HOOD.
