Toyota MR2 — HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-52020i199912-200208

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16070i199912-200208

88320COMPRESSOR ASSY, COOLER

main88320-17110i199912-200208

main88320-17120i200208-200308

main88320-47050i200308-200501

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i199912-200501

88365RING, SNAP

main88365-87201i199912-200501

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16020i199912-200208

88410CLUTCH ASSY, MAGNET

main88410-17090i200208-200308

main88410-17110i200308-200501

main88410-52020i199912-200208

9009904349

main90099-04349

9009907065

main90099-07065

9011908B42

main90119-08B42

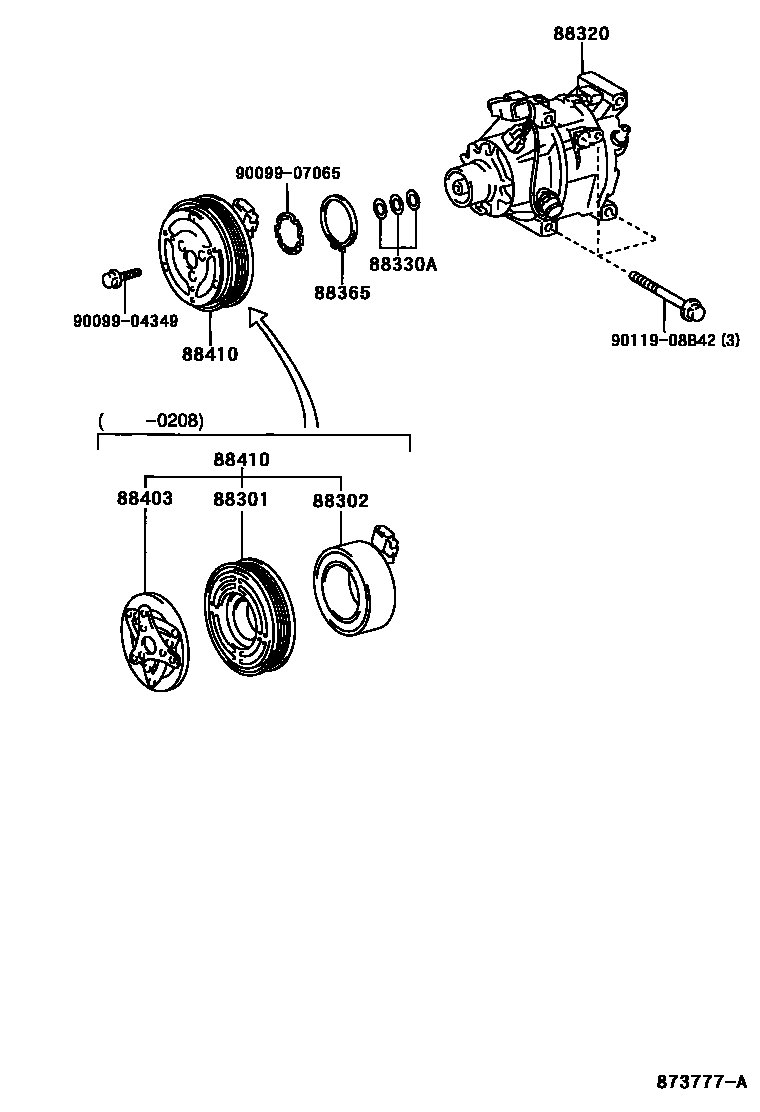

10 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota MR2

This section contains 10 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota MR2. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), RING, SNAP.
