Toyota MR2 — HEATING & AIR CONDITIONING - COMPRESSOR

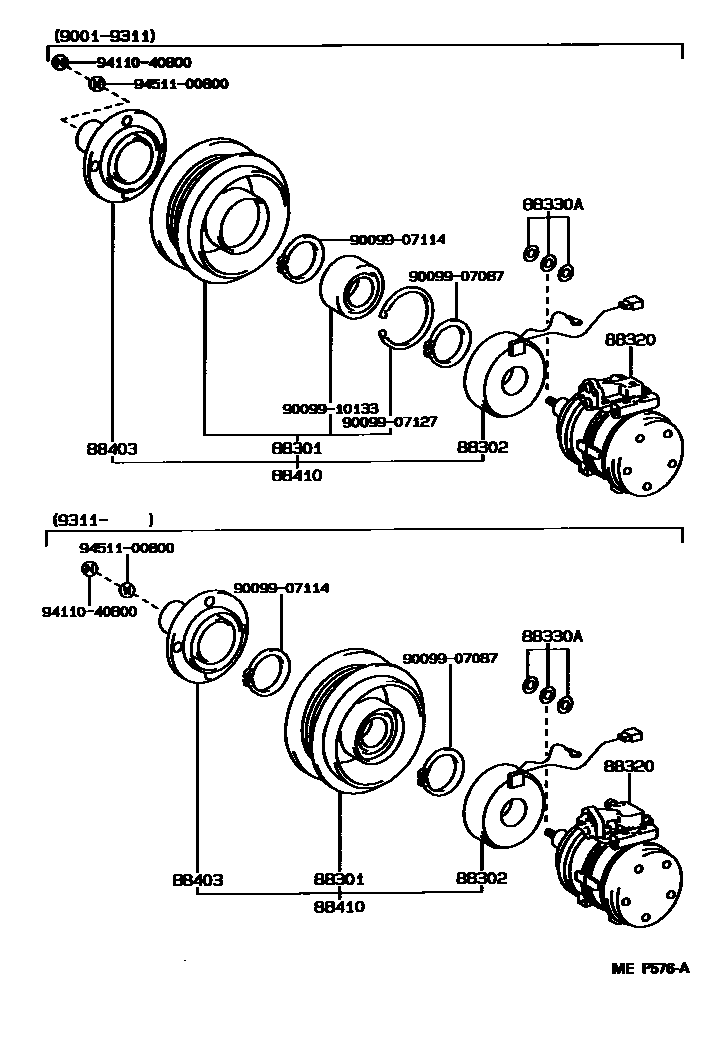

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-17010i199001-199311

main88412-17020i199311-199506

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-17060i199001-199311

main88411-17070i199201-199311

main88411-17080i199311-199506

88320COMPRESSOR ASSY, COOLER

main88320-17090i199001-199006

main88320-17091i199006-199311

main88320-17100i199311-199506

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050i199001-199506

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030i199001-199506

88410CLUTCH ASSY, MAGNET

main88410-17060i199001-199201

main88410-17070i199201-199311

main88410-17080i199311-199506

9009907087

main90099-07087

9009907114

main90099-07114

9009907127

main90099-07127

9009910133

main90099-10133

9411040800

main94110-40800

9451100800

main94511-00800

12 parts on this diagram · 4 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota MR2

This section contains 41 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota MR2. Key components include: V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, HEAD, COOLER COMPRESSOR CYLINDER.
