Toyota MR2 — HEADLAMP

04817HEADLAMP KIT, W/O SEALED BEAM, RH

main04817-17010i198412-198803

04818HEADLAMP KIT, W/O SEALED BEAM, LH

main04818-17010i198412-198803

81110HEADLAMP ASSY, RH

main81110-17030i198601-198912

main81110-80391i198412-198601

81110SSEALED BEAM UNIT, NO.1

main90981-04020×2i198412-198803

12V 65/35W,*HAL,*WB,12V 65/35W

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-17010i198412-198912

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-17010i198412-198912

81121SPRING, HEADLAMP TENSION

main81121-14670×2i198412-198508

main81121-17010×2i198508-198912

81131SCREW, HEADLAMP ADJUSTING

main81131-17010×2i198412-198803

81150HEADLAMP ASSY, LH

main81150-17030i198601-198912

main81150-80383i198412-198601

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-17010i198412-198912

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-17010i198412-198912

85660AMOTOR ASSY, LIGHT RETRACTOR, RH

main85660-17010i198412-198912

85690AMOTOR ASSY, LIGHT RETRACTOR, LH

main85690-17010i198412-198912

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9018905015

main90189-05015

9165160650

main91651-60650

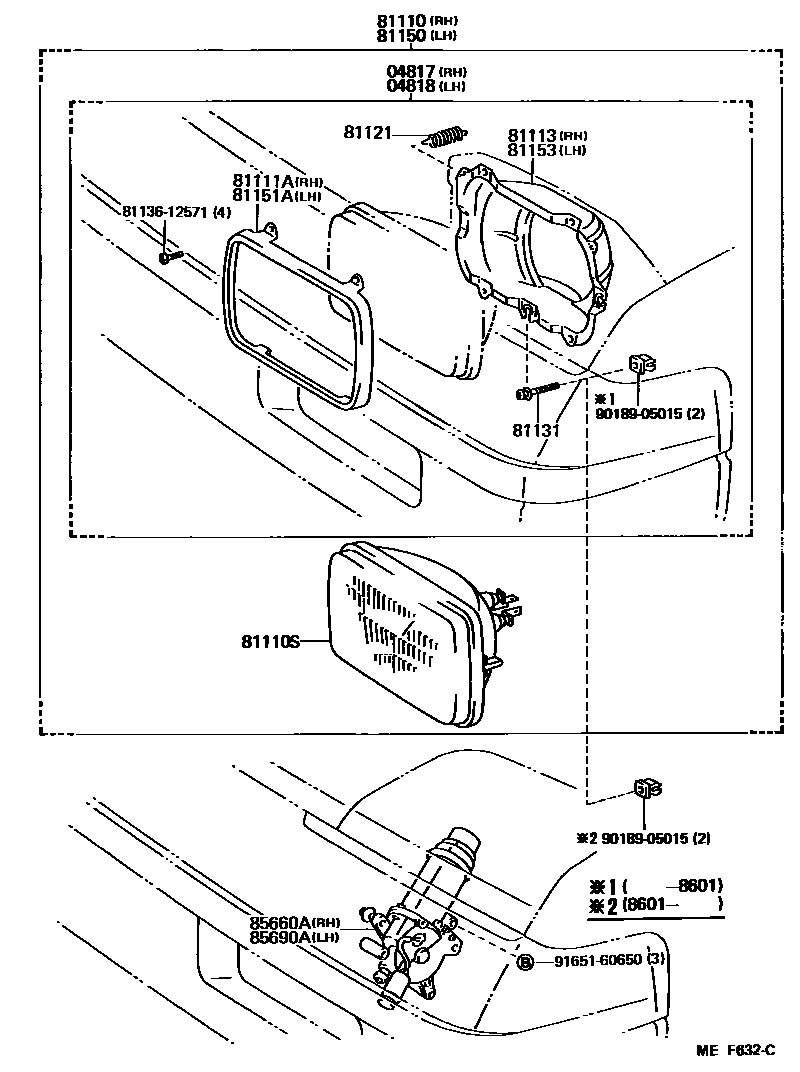

16 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota MR2

This section contains 16 genuine Toyota parts for the HEADLAMP system of the Toyota MR2. Key components include: HEADLAMP KIT, W/O SEALED BEAM, RH, HEADLAMP KIT, W/O SEALED BEAM, LH, HEADLAMP ASSY, RH, SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH.
