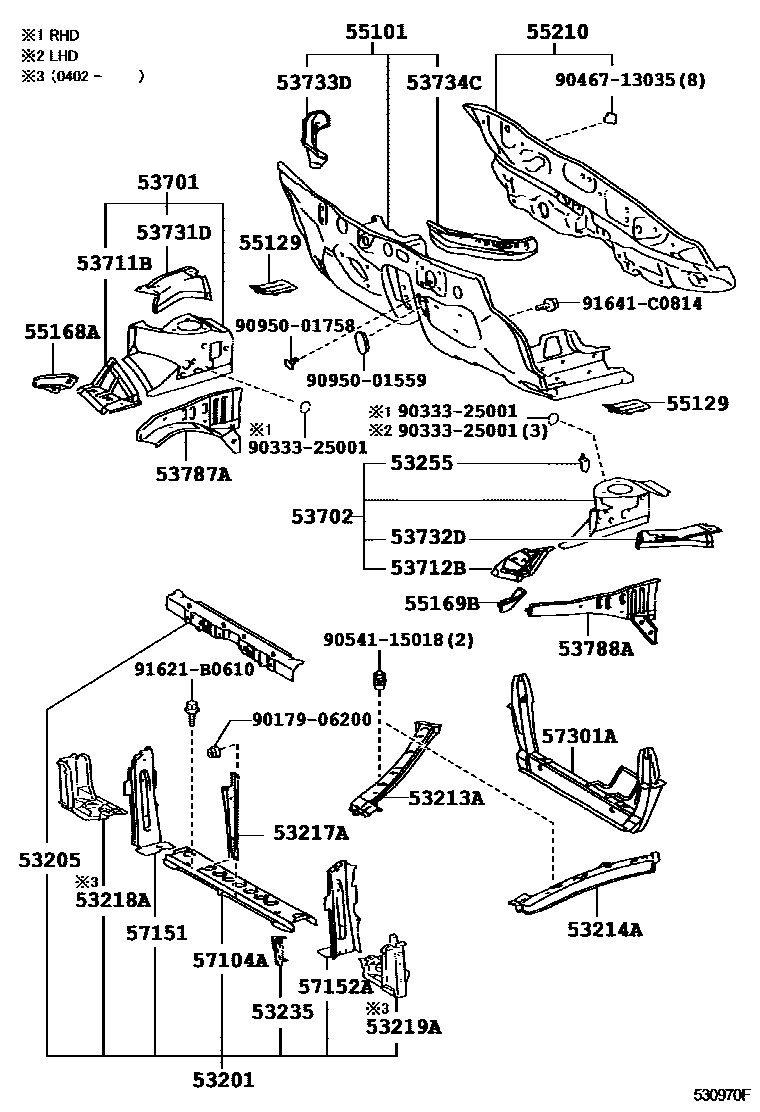

Toyota MR2 — FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53217ABRACE, HOOD LOCK SUPPORT
53218ASUPPORT, RADIATOR, LOWER
53219ASUPPORT, RADIATOR, LOWER REAR
53255BRACKET, RELAY BOX MOUNTING
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53787AGUSSET, FRONT FENDER APRON, LOWER RH
53788AGUSSET, FRONT FENDER APRON, LOWER LH
55101PANEL SUB-ASSY, DASH
55129COVER, DASH PANEL HOLE
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
57104AMEMBER SUB-ASSY, FRONT CROSS
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
9017906200
main90179-06200
9033325001
main90333-25001
9046713035
main90467-13035
9054115018
main90541-15018
9095001559
main90950-01559
9095001758
main90950-01758
91621B0610
main91621-B0610
91641C0814
main91641-C0814
36 parts on this diagram · 1 diagram in section
