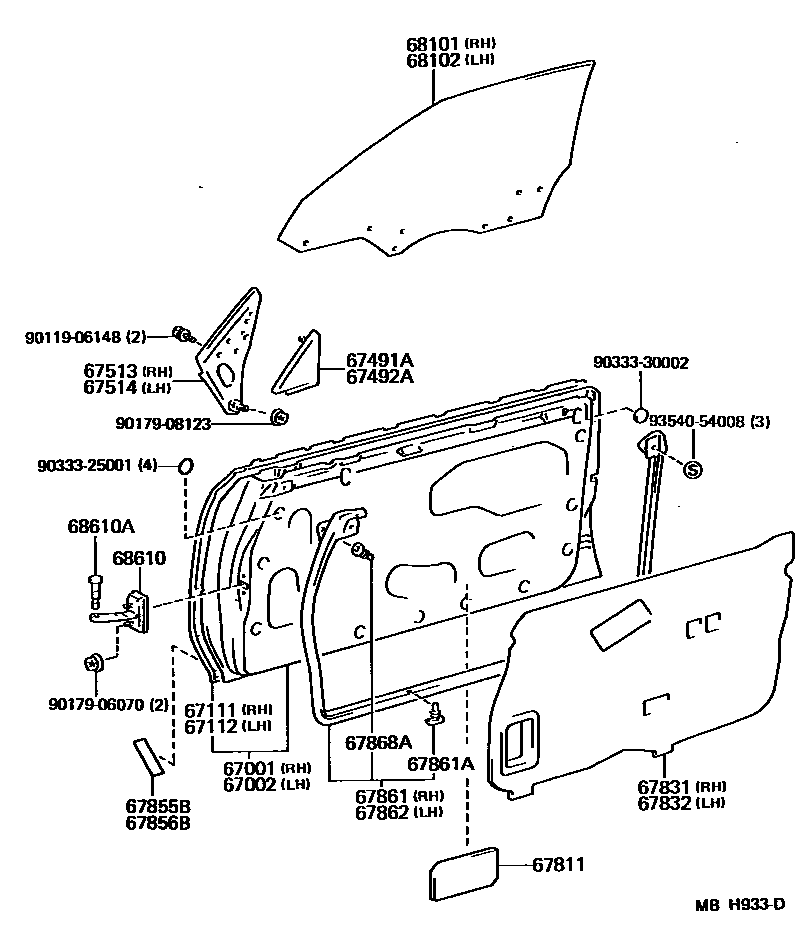

Toyota MR2 — FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-17020i198412-198912

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-17020i198412-198808

main67002-17021i198808-198912

67111PANEL, FRONT DOOR, OUTER RH

main67111-17020i198412-198912

67112PANEL, FRONT DOOR, OUTER LH

main67112-17020i198412-198912

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-17010i198412-198912

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-17010i198412-198912

67513BRACKET, FRONT DOOR MIRROR, RH

main67513-17010i198412-198912

67514BRACKET, FRONT DOOR MIRROR, LH

main67514-17010i198412-198912

67811PAD, FRONT DOOR SILENCER

main67811-17010×2i198803-198912

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-17020i198808-198912

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-17020i198412-198808

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-16010i198803-198912

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-16010i198803-198912

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-17010i198412-198912

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×42i198412-198803

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-17010i198412-198912

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main67869-30020×2i198412-198912

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-17010i198412-198803

*TT,T=5.0,*TT,T=5.0

main68111-17020i198412-198803

*TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-17010i198412-198803

*TT,T=5.0,*TT,T=5.0

main68112-17020i198803-198912

*TT,T=5.0,BRONZE

68610CHECK ASSY, FRONT DOOR

main68610-24010×2i198412-198912

68610APIN(FOR FRONT DOOR CHECK)

main68617-30010×2i198412-198507

main68617-90K00×2i198507-198912

9011906148

main90119-06148

9017906070

main90179-06070

9017908123

main90179-08123

9033325001

main90333-25001

9033330002

main90333-30002

9354054008

main93540-54008

27 parts on this diagram · 3 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota MR2

This section contains 49 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota MR2. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH.
