Toyota MR2 — FRONT AXLE HUB

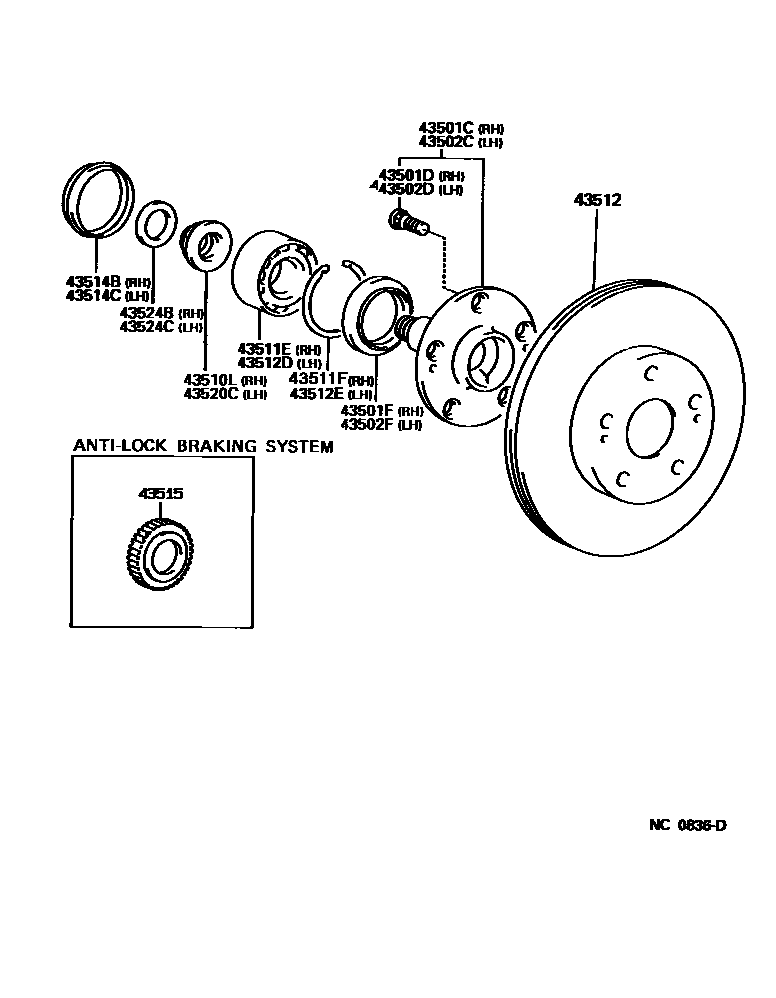

Parts diagram
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-17020i199001-199506
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049×5i199001-199506
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
main90311-42018i199001-199506
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-17020i199001-199506
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049×5i199001-199506
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
main90311-42018i199001-199506
43510LNUT (FOR STEERING KNUCKLE RH)
main90179-20003i199001-199506
43511EBEARING (FOR FRONT AXLE HUB RH)
main90369-30044i199001-199506
43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90521-68001i199001-199506
43512DISC, FRONT
main43512-17040×2i199201-199311
main43512-17050×2i199311-199506
sub43512-17070
main43512-17080×2i199208-199506
main43512-17090×2i199201-199208
43512DBEARING (FOR FRONT AXLE HUB LH)
main90369-30044i199001-199506
43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90521-68001i199001-199506
43514BCAP, FRONT AXLE HUB GREASE, RH
main43514-17020i199001-199506
43514CCAP, FRONT AXLE HUB GREASE, LH
main43514-17020i199001-199506
43515ROTOR, SKID CONTROL, FRONT
main43515-17010×2i199001-199506
43520CNUT (FOR STEERING KNUCKLE LH)
main90179-20003i199001-199506
43524BSPACER, FRONT WHEEL INNER BEARING, RH
main43524-17010i199001-199506
43524CSPACER, FRONT WHEEL INNER BEARING, LH
main43524-17010i199001-199506

18 parts on this diagram · 1 diagram in section
