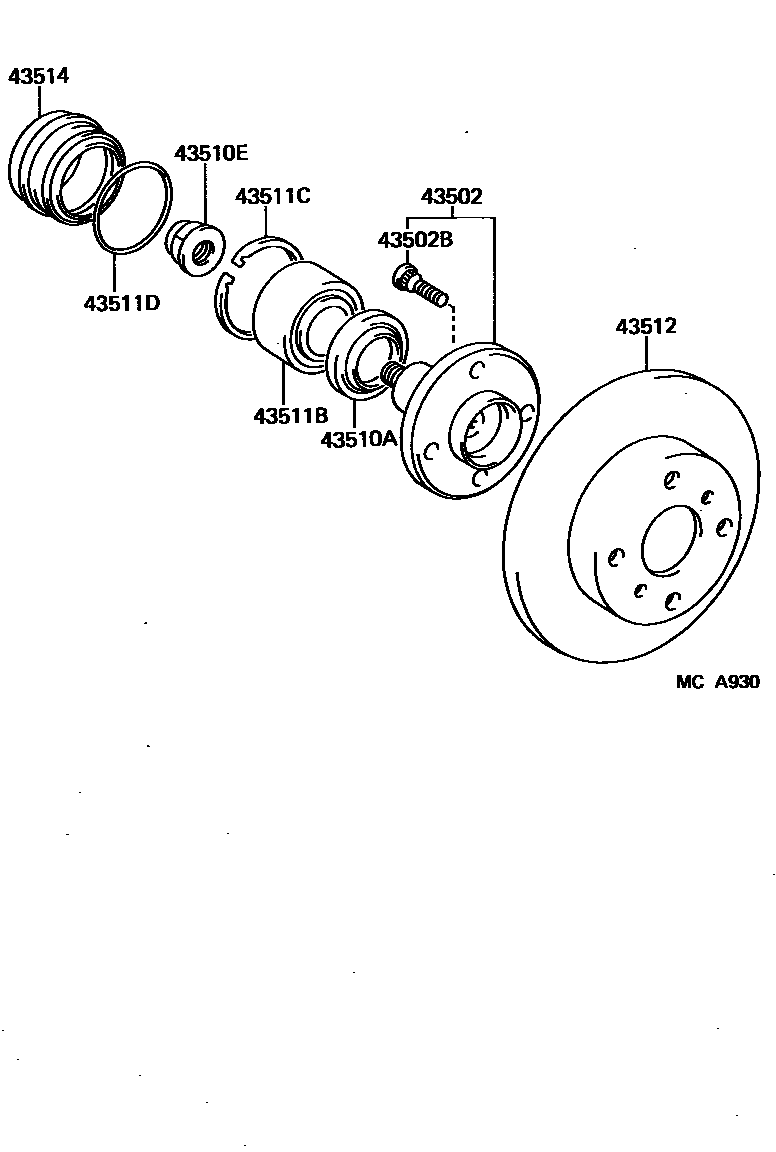

Toyota MR2 — FRONT AXLE HUB

43502HUB SUB-ASSY, FRONT AXLE

main43502-17010×2iAW11198412-198803

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047×8iAW11198412-198803

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41002×2iAW11198412-198511

main90311-41004×2iAW11198511-198803

43510ENUT (FOR STEERING KNUCKLE)

main90179-20003×2iAW11198412-198803

43511BBEARING (FOR FRONT AXLE HUB)

main90369-28006×2iAW11198412-198803

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-66003iAW11198803-198804

43511DRING, O (FOR FRONT AXLE HUB)

main96711-35056iAW11..TBR;AW11..CP..USA198804-198912

43512DISC, FRONT

main43512-17010×2iAW11198608-198912

main43512-20080×2iAW11198412-198608

43514CAP, FRONT HUB GREASE

main43514-17010×2iAW11198412-198803

9 parts on this diagram · 1 diagram in section
