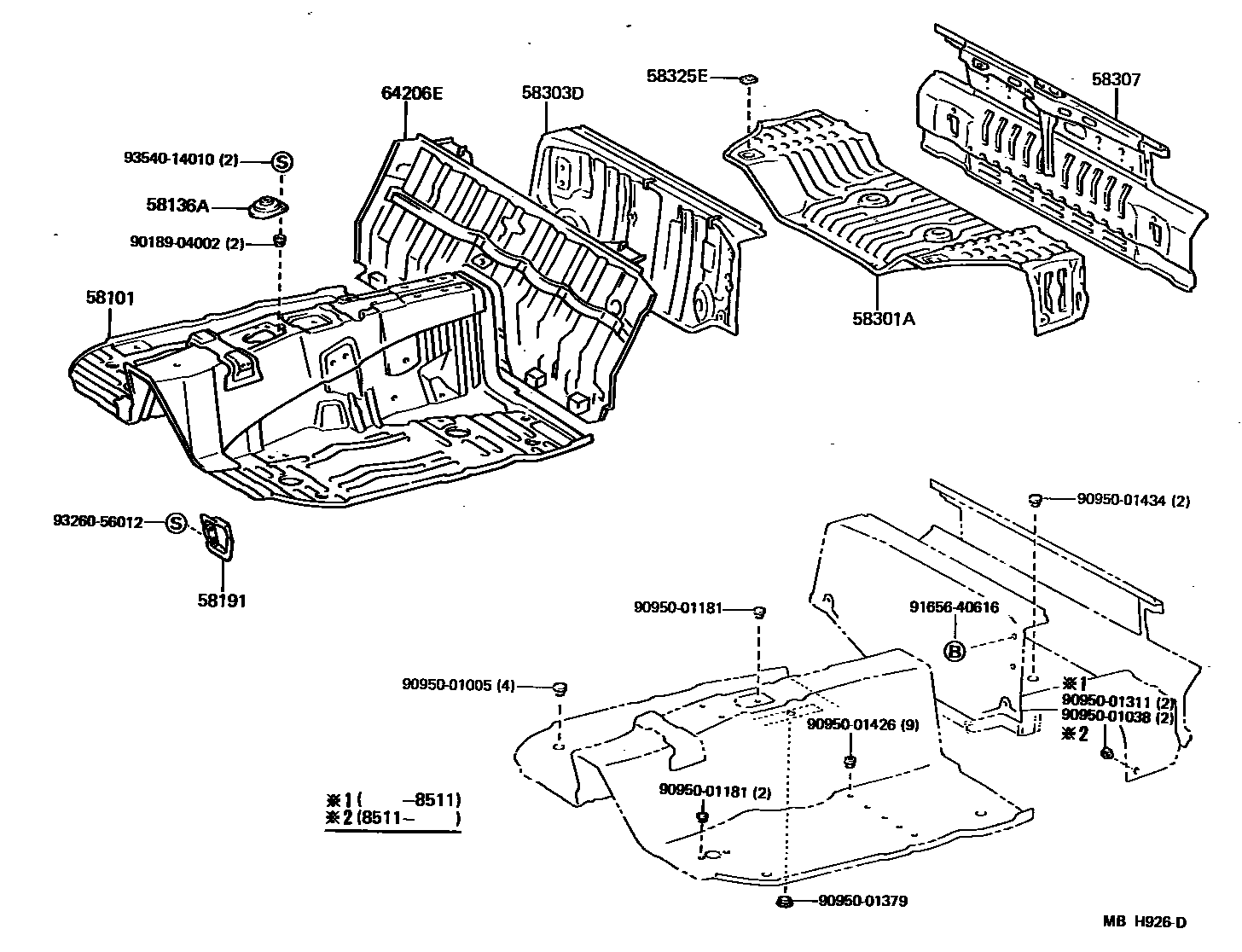

Toyota MR2 — FLOOR PAN & LOWER BACK PANEL

58101PAN SUB-ASSY, FRONT FLOOR

main58101-17903iAW11198412-198608

main58101-17905iAW11198608-198912

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-17010iAW11198412-198912

58191FOOTREST, FRONT FLOOR

main58192-17010iAW11198412-198608

58301APANEL SUB-ASSY, REAR FLOOR

main58301-17020iAW11198412-198608

main58301-17021iAW11198608-198912

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-17030iAW11198412-198608

main58303-17031iAW11..GT198803-198912

main58303-17040iAW11..SPC198803-198912

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-17030iAW11198412-198608

main58307-17031iAW11198608-198912

main58307-17040iAW11198412-198608

W/CENTER FINISH PANEL

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-17010×2iAW11198412-198912

64206EPANEL SUB-ASSY, ROOM PARTITION

main64206-17070iAW11..SPC198910-198912

W/RR SPOILER(LED)

main64206-17080iAW11..SPC198910-198912

9018904002

main90189-04002

9095001005

main90950-01005

9095001038

main90950-01038

9095001181

main90950-01181

9095001311

main90950-01311

9095001379

main90950-01379

9095001426

main90950-01426

9095001434

main90950-01434

9165640616

main91656-40616

9326056012

main93260-56012

9354014010

main93540-14010

19 parts on this diagram · 1 diagram in section
