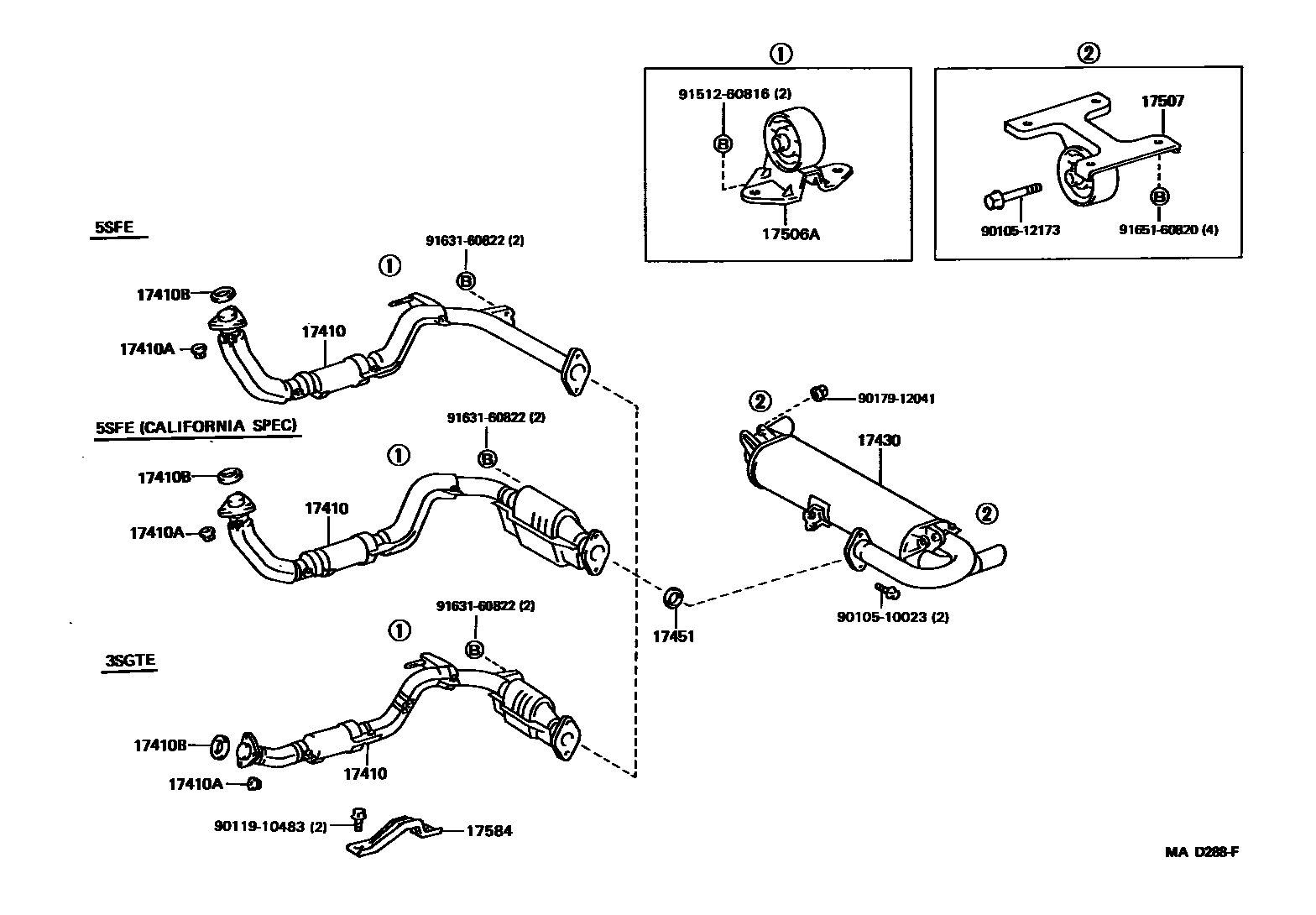

Toyota MR2 — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
CALIFORNIA SPEC
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17451GASKET, EXHAUST PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17584STOPPER, EXHAUST TAILPIPE
9010510023
main90105-10023
9010512173
main90105-12173
9011910483
main90119-10483
9017912041
main90179-12041
9151260816
main91512-60816
9163160822
main91631-60822
9165160820
main91651-60820
15 parts on this diagram · 1 diagram in section
EXHAUST PIPE for Toyota MR2
This section contains 15 genuine Toyota parts for the EXHAUST PIPE system of the Toyota MR2. Key components include: PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, TAIL.
