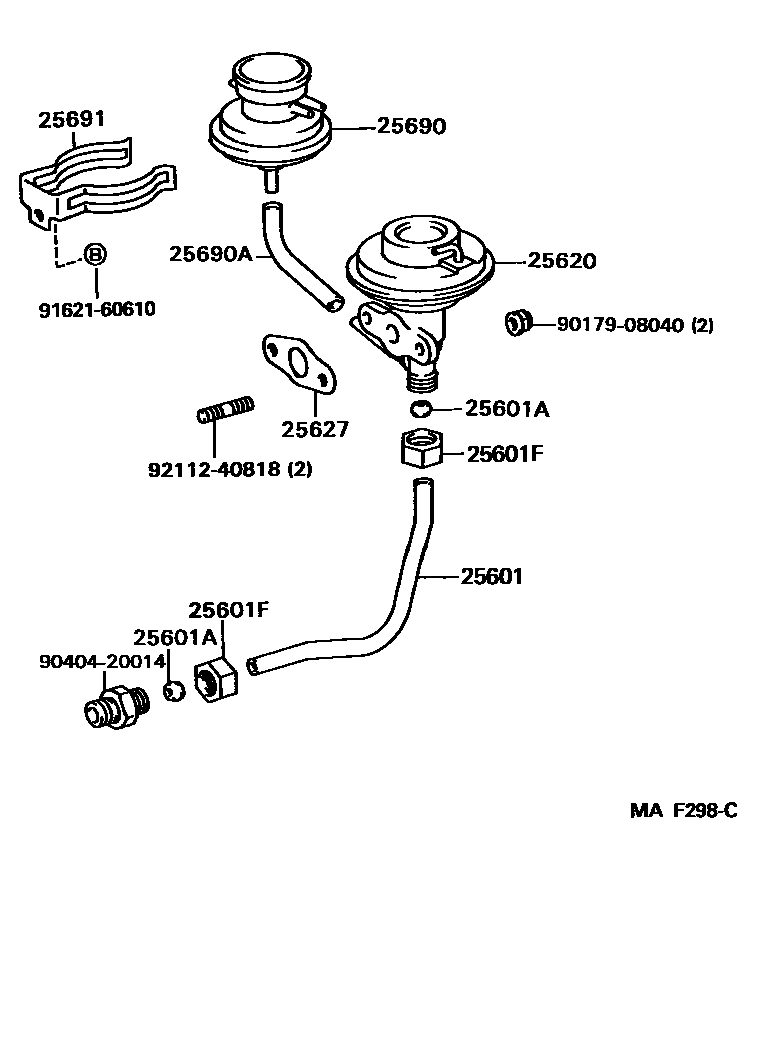

Toyota MR2 — EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601FUNION(FOR EGR PIPE, NO.1)
UNION SIDE
EGR VALVE SIDE
25620VALVE ASSY, EGR
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
25627GASKET, EGR VALVE
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
25691BRACKET, EGR VACUUM MODULATOR
9017908040
main90179-08040
9040420014
main90404-20014
9162160610
main91621-60610
9211240818
main92112-40818
12 parts on this diagram · 2 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota MR2
This section contains 18 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota MR2. Key components include: VACUUM PIPING, PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, UNION(FOR EGR PIPE, NO.1).
