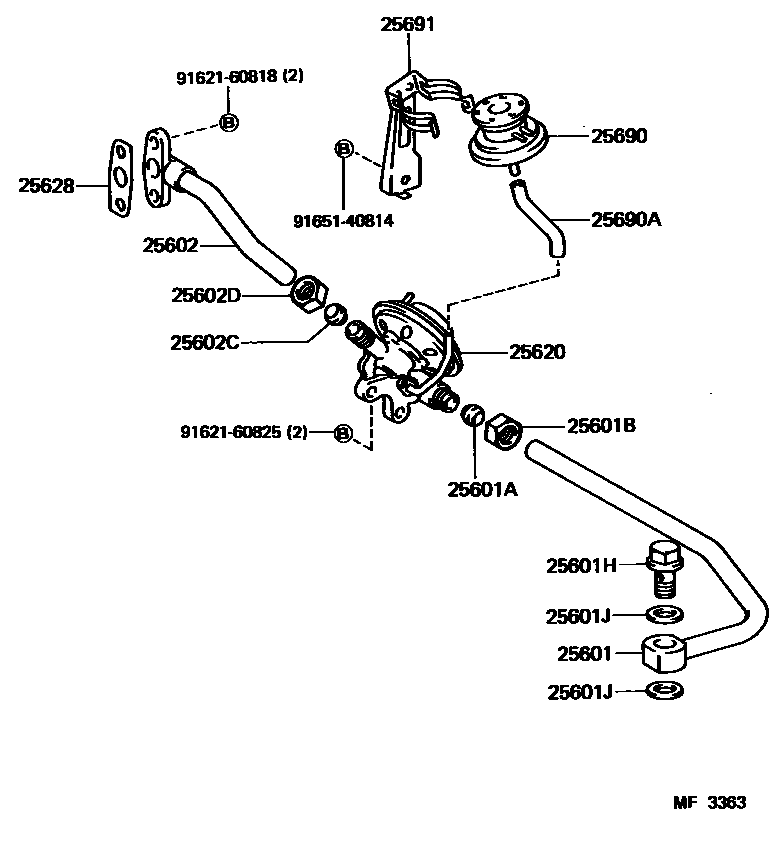

Toyota MR2 — EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25601HBOLT, UNION(FOR EGR PIPE,NO.1)
25601JGASKET(FOR EGR PIPE, NO.1)
25602PIPE SUB-ASSY, EGR, NO.2
25602CSLEEVE, BALL(FOR EGR PIPE, NO.2)
25602DNUT, UNION(FOR EGR PIPE, NO.2)
25620VALVE ASSY, EGR
25628GASKET, EGR INLET
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
25691BRACKET, EGR VACUUM MODULATOR
9162160818
main91621-60818
9162160825
main91621-60825
9165140814
main91651-40814
16 parts on this diagram · 2 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota MR2
This section contains 20 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota MR2. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, BOLT, UNION(FOR EGR PIPE,NO.1), GASKET(FOR EGR PIPE, NO.1).
