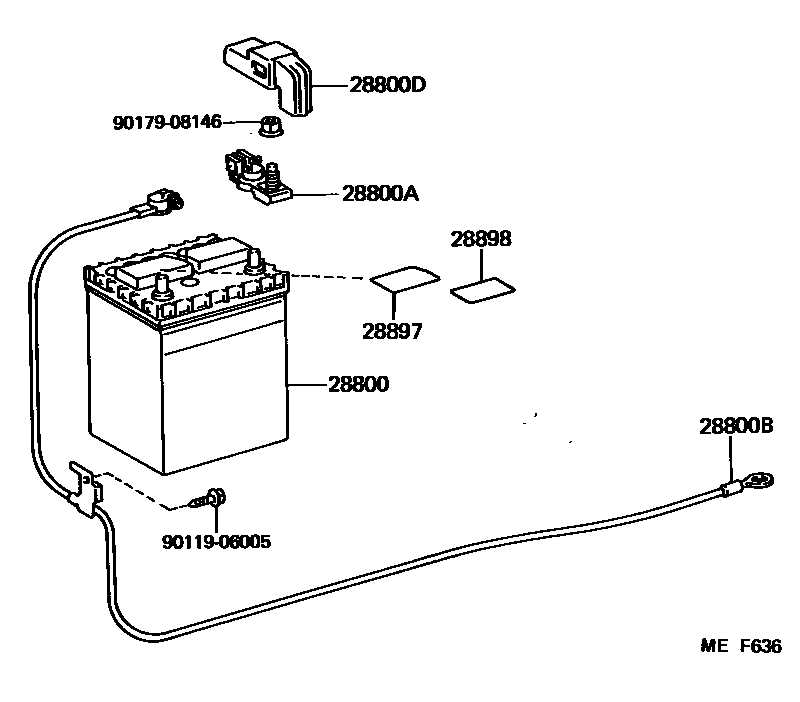

Toyota MR2 — BATTERY & BATTERY CABLE

28800BATTERY

main28800-43220i198412-198803

55D23L,55D23L-MF

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i198708-198912

main90982-05029i198412-198608

main90982-05030i198608-198912

28800BCABLE, BATTERY TO GROUND

main82123-17010i198412-198608

main82123-17060i198608-198912

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i198708-198912

main82821-24010i198412-198912

28897PLATE, BATTERY CAUTION

main28897-38010i198412-198912

28898PLATE, BATTERY

main28898-26010i198412-198912

9011906005

main90119-06005

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota MR2

This section contains 8 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota MR2. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND, COVER, CONNECTOR(FOR BATTERY TERMINAL), PLATE, BATTERY CAUTION.
