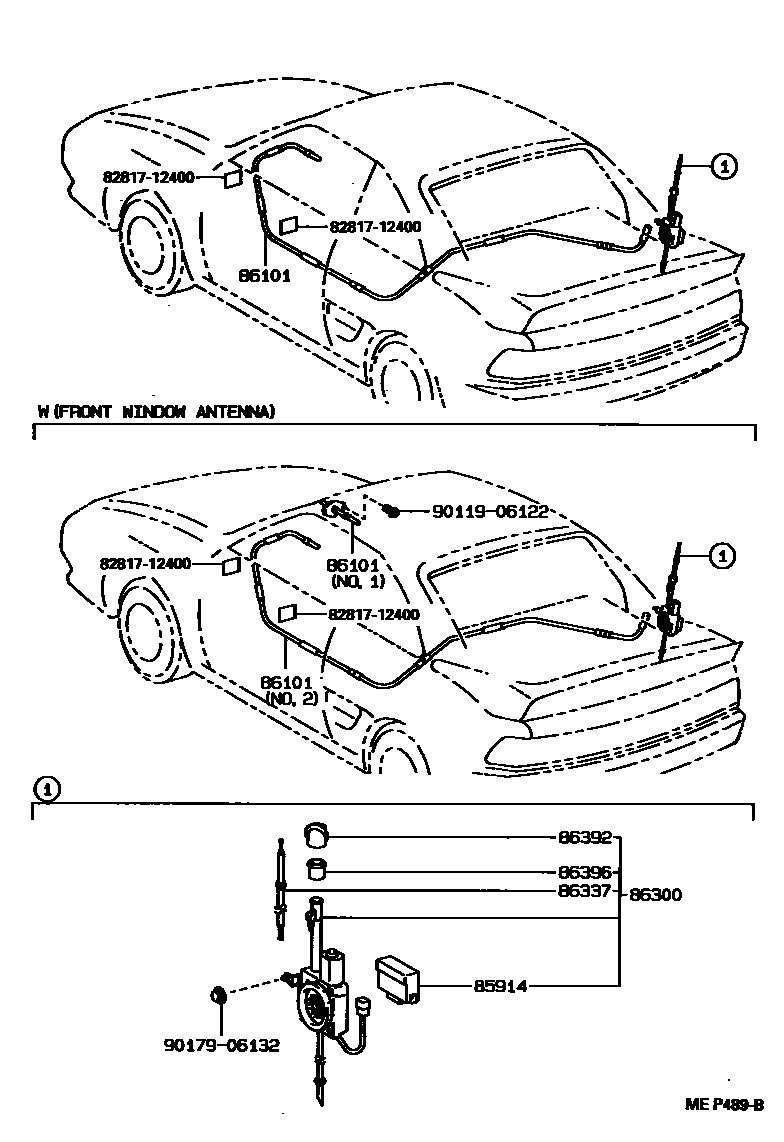

Toyota MR2 — ANTENNA

0001 1MOTOR ANTENNA 0002 1PILLAR ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-30010iSW2#199001-199505

main85914-33020iSW2#199505-199506

86101CORD SUB-ASSY, ANTENNA

main86101-17030iSW20;SW21..TBR199201-199311

NO.1

main86101-17040iSW20;SW21..TBR199001-199201

NO.2

86300ANTENNA ASSY, W/HOLDER

main86300-17080iSW2#..TBR199311-199505

MOTOR

main86300-17081iSW2#..TBR199505-199506

MOTOR

main86300-17090iSW21..CP199001-199506

main86300-17100iSW21..TBR199001-199311

main86300-17110iSW21..CP199201-199311

W(REAR SPOILER)

86337ROD & PIPE, SEALED W/CABLE

main86337-17080iSW2#199311-199506

main86337-17110iSW21..TBR199001-199311

W(REAR SPOILER)

main86337-32200iSW21..TBR199001-199311

86392ORNAMENT, ANTENNA

main86392-17070iSW2#199001-199311

main86392-17080iSW2#199311-199506

86396NUT, ANTENNA

main86396-20030iSW2#199311-199506

main86396-50010iSW2#199001-199311

8281712400PROTECTOR, WIRING HARNESS, NO.1

main82817-12400

9011906122

main90119-06122

9017906132

main90179-06132

9 parts on this diagram · 2 diagrams in section
