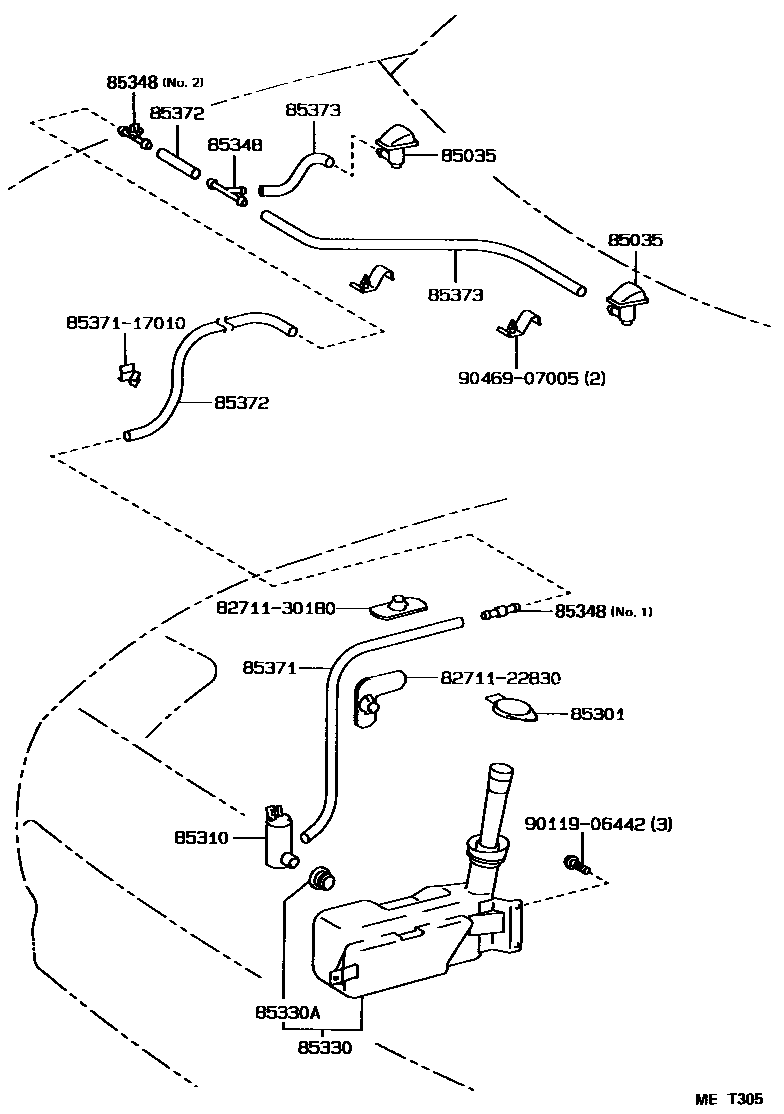

Toyota MR2 — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12050×2iSW20199205

main85381-17010iSW20198912-199205

main85382-17010iSW20198912-199205

85301INLET SUB-ASSY, WASHER

main85301-17010iSW20198912

main85301-17020iSW20199208-199606

main85301-17021iSW20199606

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210iSW20199208

sub85330-10280

main85310-22080iSW20198912-199208

85330JAR ASSY, WINDSHIELD WASHER

main85315-17020iSW20198912

main85315-17060iSW20199208

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iSW20198912

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iSW20199208-199311

main85348-14390iSW20198912

3-WAY

main85349-89122iSW20198912

2-WAY,NO.1

main85375-17050iSW20198912

2-WAY,NO.2

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iSW20198912

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iSW20198912

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iSW20198912

8271122830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22830

8271130180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30180

8537117010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-17010

9011906442

main90119-06442

9046907005

main90469-07005

14 parts on this diagram · 1 diagram in section
