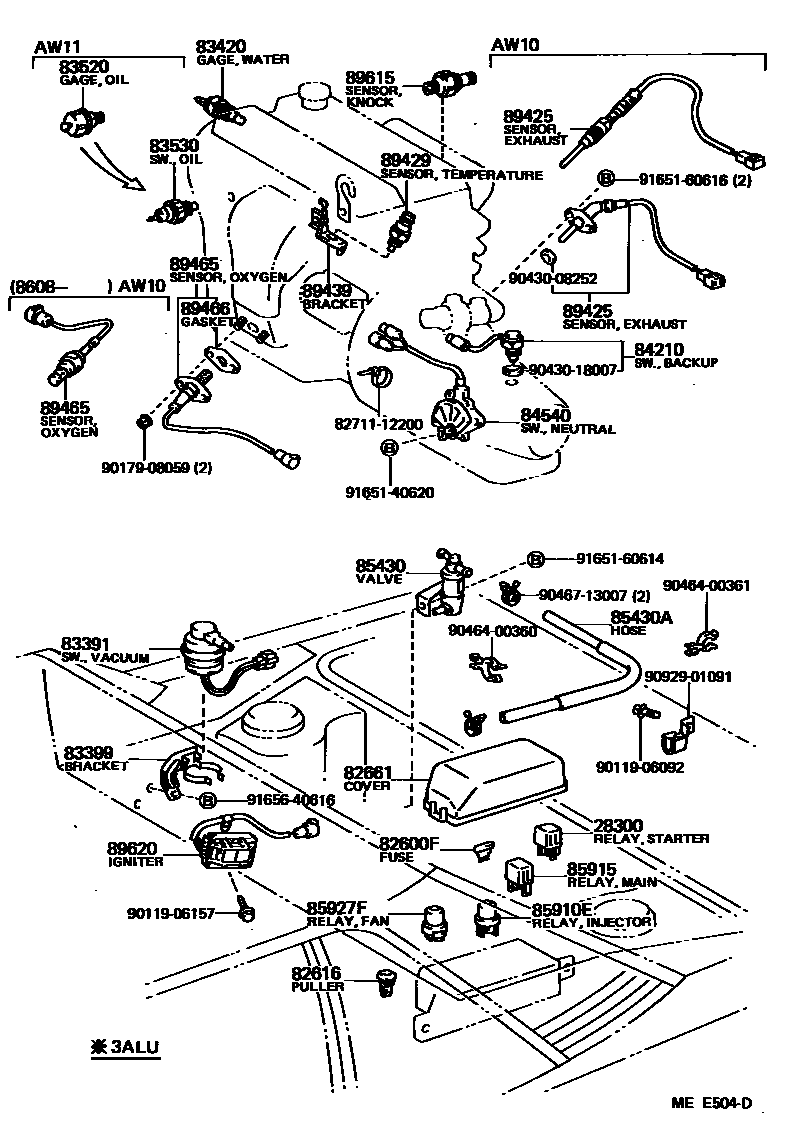

Toyota MR2 — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28300RELAY ASSY, STARTER

main28300-24031i3ALU,4AG#..AW1#198406-198912

sub28300-16010

82600FFUSE, FUSE BLOCK

main90982-07011×3iAW1#198803-198912

main90982-09001iAW1#198803-198912

main90982-09002×2iAW1#198803-198912

main90982-09003×3iAW1#198803-198912

main90982-09004×2iAW1#198803-198912

main90982-09005×3iAW1#198803-198912

82616PULLER, FUSE

main82616-12010iAW1#198406-198912

82661COVER, RELAY BLOCK, NO.1

main82661-17010iAW1#198406-198608

main82661-17011iAW1#198608-198912

83391SWITCH, VACUUM

main83391-17020iAW10198406-198912

83399BRACKET, VACUUM SWITCH

main83399-17010iAW10198406-198912

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iAW1#198406-198803

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14022iAW11198406-198705

main83520-14023iAW11198705-198912

sub83520-35030

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12040iAW10198406-198503

main83530-14040iAW10198503-198511

main83530-30050iAW10198708-198912

sub83530-30051

main83530-30080iAW10198511-198708

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iAW1#..5F198406-198912

84540SWITCH ASSY, NEUTRAL START

main84540-12160iAW10..4FC198406-198912

main84540-32050iAW11..4FC198406-198803

85430VALVE, OUTER VENT CONTROL

main85430-16020iAW10198406-198608

main90925-09020iAW10198608-198912

85430AHOSE

main90447-14014iAW10198406-198608

main90447-14019iAW10198608-198912

85910ERELAY, INJECTOR

main90987-02004iAW11198406-198803

85915RELAY, MAIN

main90987-04002iAW1#198406-198912

85927RELAY, COOLING FAN

main85925-17010iAW1#198612-198912

main90987-04002iAW1#198406-198612

85927FRELAY, COOLING FAN, NO.7

main90987-03001iAW11198406-198608

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-12250iAW10198608-198912

main89425-17020iAW10198406-198608

sub89425-10060

main89425-19335iAW11198406-198608

main89425-19375iAW11..TWC198608-198912

89429SENSOR, OIL TEMPERATURE

main89429-17010iAW11198406-198608

main89429-17011iAW11198608-198912

89439BRACKET, SENSOR

main89439-17011iAW11198406-198912

89465SENSOR, OXYGEN

main89465-12070iAW10198608-198912

main89465-19085iAW10198406-198608

main89465-19095iAW11198406-198906

main89465-19096iAW11198906-198912

89466GASKET, OXYGEN SENSOR

main89466-20020iAW11198810-198912

main89466-30010iAW11198406-198810

main89466-32010iAW10198406-198608

sub89466-30030

89615SENSOR, KNOCK CONTROL

main89615-17010iAW11..SPC198803-198912

89620IGNITER ASSY

main89620-32030iAW11198406-198912

sub89620-30210

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011906092

main90119-06092

9011906157

main90119-06157

9017908059

main90179-08059

9043008252

main90430-08252

9043018007

main90430-18007

9046400360

main90464-00360

9046400361

main90464-00361

9046713007

main90467-13007

9092901091

main90929-01091

9165140620

main91651-40620

9165160614

main91651-60614

9165160616

main91651-60616

9165640616

main91656-40616

38 parts on this diagram · 4 diagrams in section
