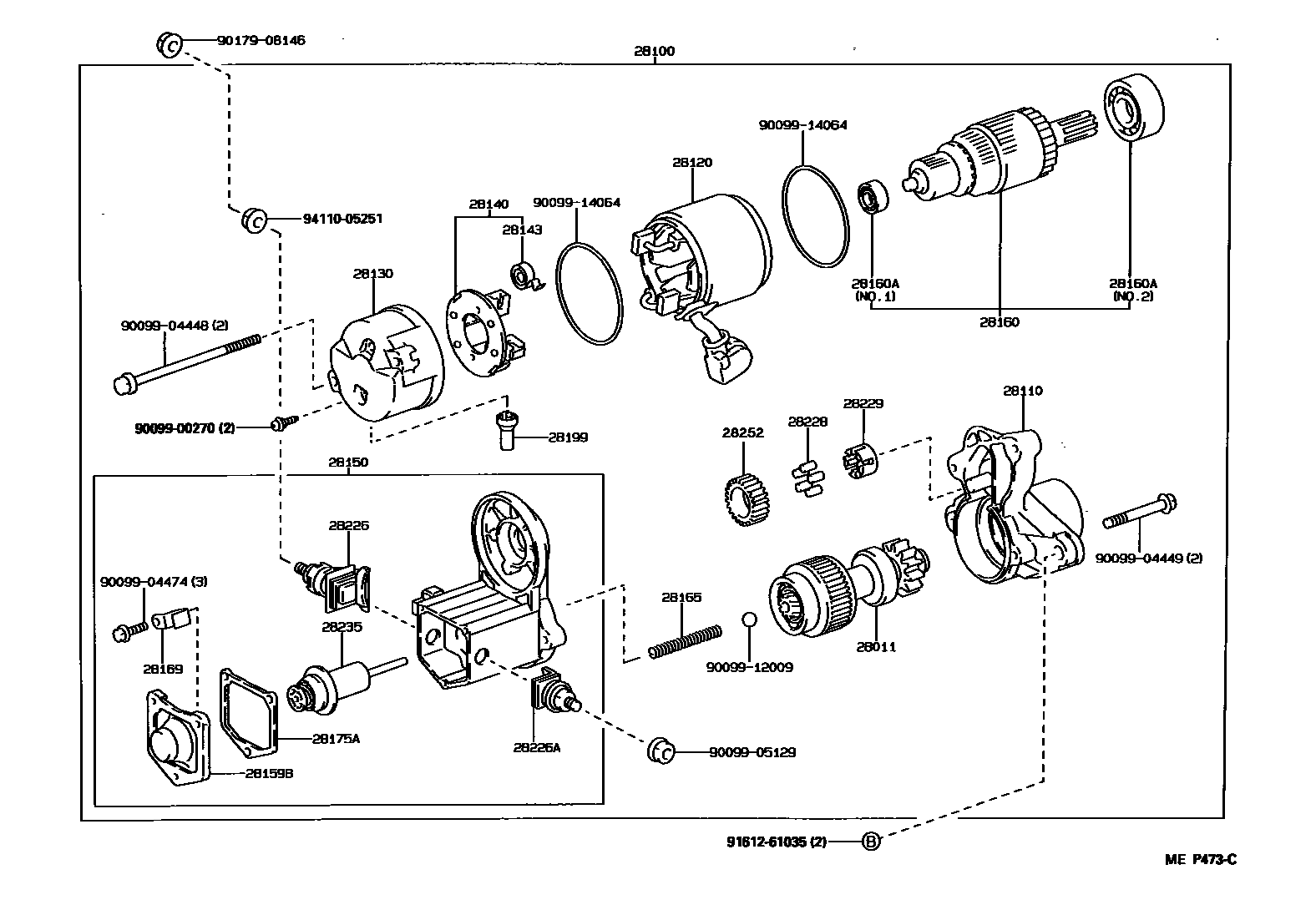

Toyota MR2 — STARTER

0001 112V 1.4KW 0002 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-74011i3SGTE..SW20198912-199006

main28011-74060i3SGTE..SW20199006

main28011-74070i3SGE..SW20198912

28100STARTER ASSY

main28100-62021i3SGTE..SW20198912

sub28100-74050

main28100-74070i3SGE..SW20198912

28110HOUSING ASSY, STARTER DRIVE

main28110-62020i3SGTE..SW20198912

main28110-74070i3SGE..SW20198912

28120YOKE ASSY, STARTER

main28120-15090i3SGTE..SW20198912

main28120-74070i3SGE..SW20198912

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-62020i3SGTE..SW20198912

main28130-74070i3SGE..SW20198912

28140HOLDER ASSY, STARTER BRUSH

main28140-74020i3SGTE..SW20198912

main28140-74070i3SGE..SW20198912

28143SPRING, STARTER BRUSH

main90099-17112×4i3SG#..SW20198912

28150SWITCH ASSY, MAGNET STARTER

main28150-62020i3SGTE..SW20199712

main28150-74020i3SGTE..SW20198912-199712

main28150-74070i3SGE..SW20198912-199712

main28150-74071i3SGE..SW20199712

28159BCOVER, MAGNET SWITCH

main28159-10040i3SGTE..SW20198912

main28159-55050i3SGE..SW20198912

28160ARMATURE ASSY, STARTER

main28160-15091i3SGTE..SW20198912

main28160-74070i3SGE..SW20198912

28160ABEARING, STARTER ARMATURE

main90099-10143i3SGTE..SW20198912

main90099-10144i3SGTE..SW20198912

main90099-10196i3SGE..SW20198912

main90099-10197i3SGE..SW20198912

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-74010i3SGTE..SW20198912

main28165-74070i3SGE..SW20198912

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i3SGTE..SW20198912

main28169-55050i3SGE..SW20198912

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i3SGTE..SW20198912

main28175-55050i3SGE..SW20198912

28199COVER, STARTER

main28199-15090i3SGTE..SW20198912

main28199-74070i3SGE..SW20198912-199105

main28199-74110i3SGE..SW20199105

28226STARTER KIT, BATTERY TERMINAL

main28226-16130i3SGE..SW20198912-199712

main28226-62020i3SGTE..SW20199712

main28226-72080i3SGTE..SW20198912-199712

main28226-74071i3SGE..SW20199712

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i3SGTE..SW20198912

main28226-74070i3SGE..SW20198912

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i3SG#..SW20198912

28229RETAINER, STARTER IDLE GEAR

main28229-26040i3SGTE..SW20198912

main28229-74070i3SGE..SW20198912

28235PLUNGER, MAGNET SWITCH

main28235-74060i3SGTE..SW20198912

main28235-74130i3SGE..SW20198912

28252GEAR, STARTER IDLE

main28254-54070i3SGTE..SW20198912

main28254-74070i3SGE..SW20198912

9009900270

main90099-00270

9009904448

main90099-04448

9009904449

main90099-04449

9009904474

main90099-04474

9009905129

main90099-05129

9009912009

main90099-12009

9009914064

main90099-14064

9017908146

main90179-08146

9161261035

main91612-61035

9411005251

main94110-05251

31 parts on this diagram · 2 diagrams in section
