Toyota MR2 — QUARTER WINDOW

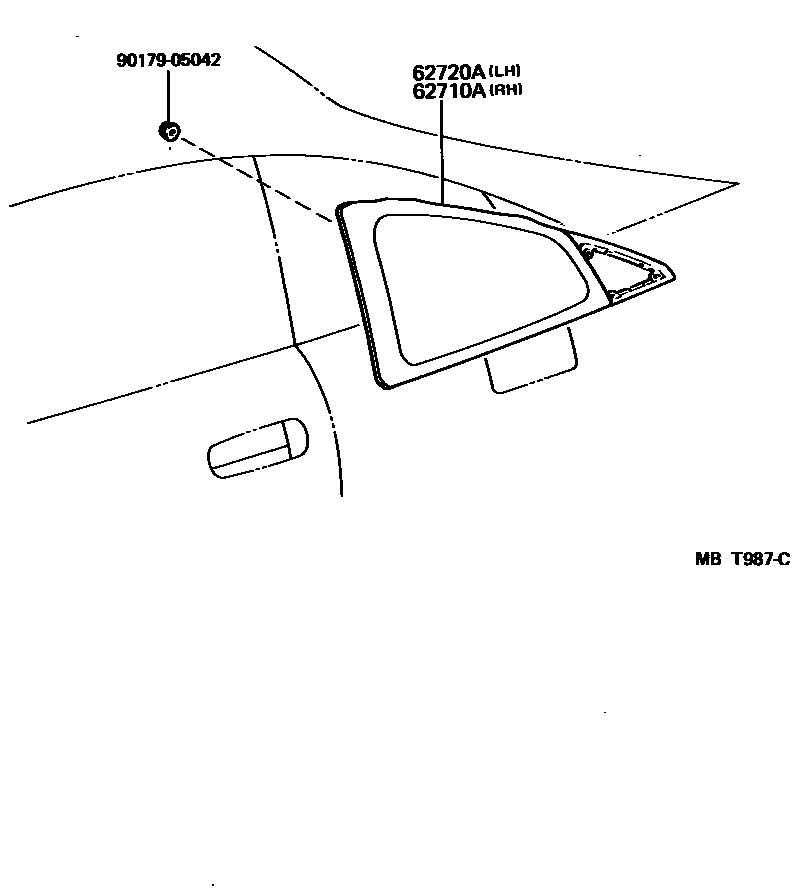

Parts diagram

62710AWINDOW ASSY, QUARTER, RH

main62710-17010i198912-199009

main62710-17020i198912-199009

main62710-17030i198912-199005

main62710-17040i198912-199009

main62710-17050i199009-199112

main62710-17060i199009-199311

main62710-17061i199311-199606

main62710-17070i199005-199112

main62710-17080i199009-199311

main62710-17081i199311-199606

main62710-17090i199606

main62710-17100i199606

62720AWINDOW ASSY, QUARTER, LH

main62720-17010i198912-199009

main62720-17020i198912-199009

main62720-17030i198912-199009

main62720-17040i198912-199009

main62720-17050i199009-199112

main62720-17060i199009-199311

main62720-17061i199311-199606

main62720-17070i199009-199112

main62720-17080i199009-199311

main62720-17081i199311-199606

main62720-17090i199606

main62720-17100i199606

9017905042

main90179-05042

3 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota MR2

This section contains 3 genuine Toyota parts for the QUARTER WINDOW system of the Toyota MR2. Key components include: WINDOW ASSY, QUARTER, RH, WINDOW ASSY, QUARTER, LH.
