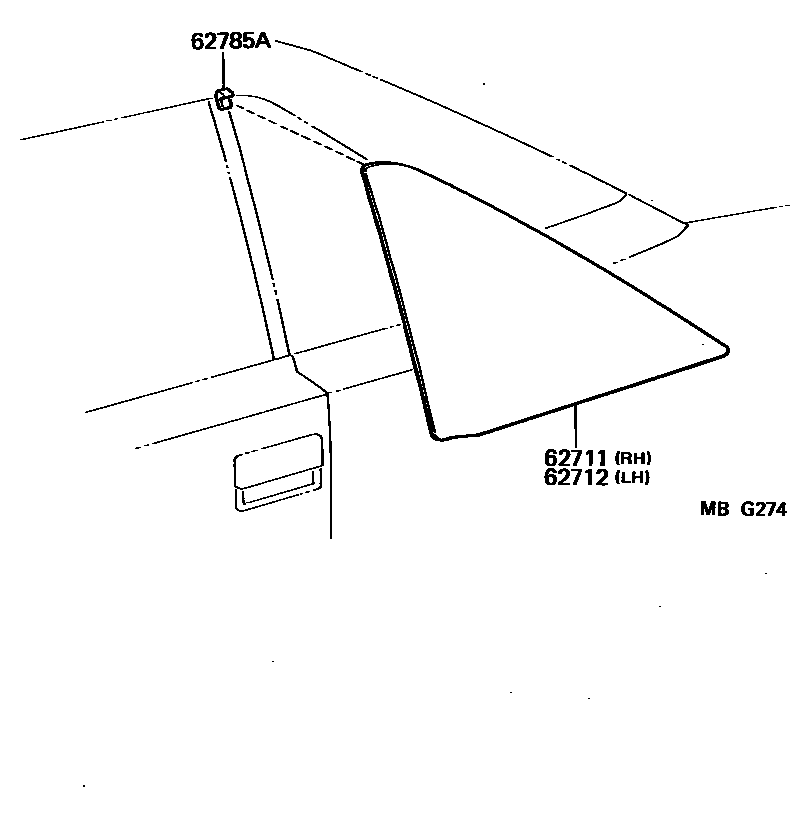

Toyota MR2 — QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-17010i198803-198912

main62711-17020i198501-198803

62712GLASS, QUARTER WINDOW, LH

main62712-17010i198803-198912

main62712-17020i198501-198803

62785ASPACER, QUARTER WINDOW GLASS

main62785-17010×2i198406-198912

main62785-17020×2i198608-198912

3 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota MR2

This section contains 3 genuine Toyota parts for the QUARTER WINDOW system of the Toyota MR2. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, SPACER, QUARTER WINDOW GLASS.
