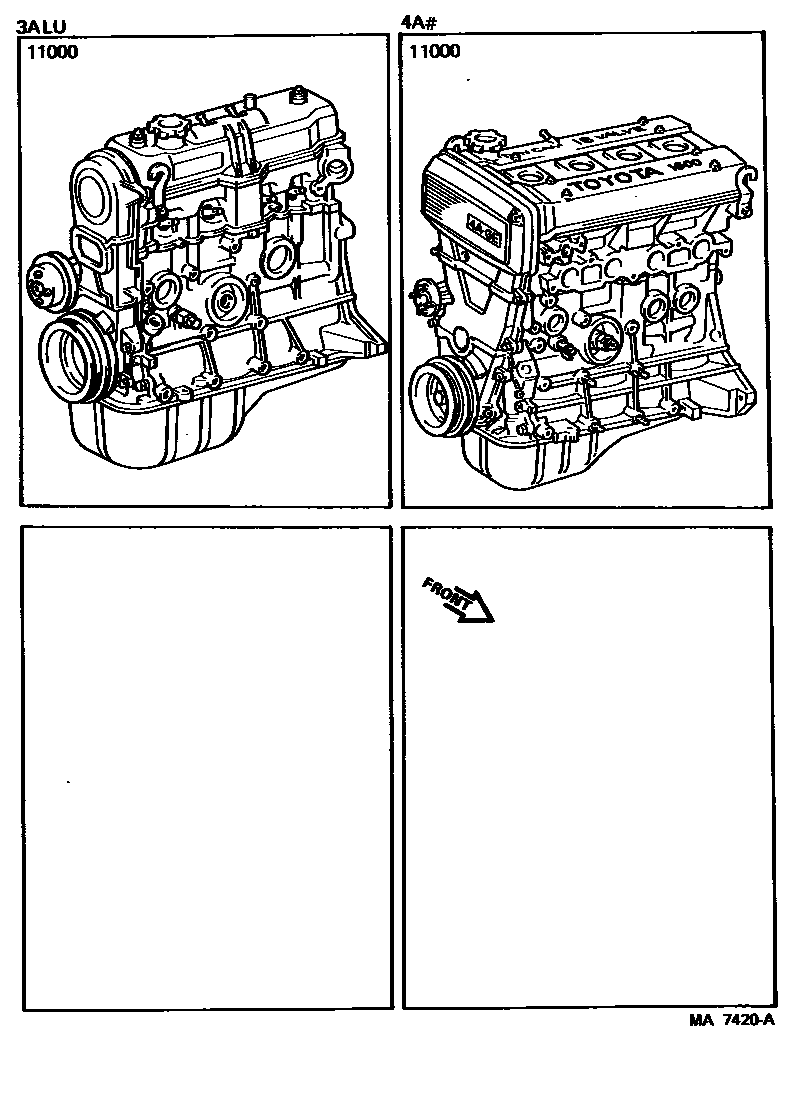

Toyota MR2 — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-15210i3ALU..AW10..5F198406-198807

main19000-15211i3ALU..AW10..5F198807-198912

main19000-15220i3ALU..AW10..4FC198406-198807

main19000-15221i3ALU..AW10..4FC198807-198912

main19000-16160i4AGELU..AW11..5F198406-198803

sub19000-16161

main19000-16170i4AGELU..AW11..4FC198406-198803

sub19000-16171

main19000-16340i4AGZE..AW11..5F198608-198705

main19000-16341i4AGZE..AW11..5F198705-198708

sub19000-16344

main19000-16342i4AGZE..AW11..5F198708-198912

sub19000-16343

main19000-16350i4AGZE..AW11..4FC198608-198705

main19000-16351i4AGZE..AW11..4FC198705-198708

sub19000-16354

main19000-16352i4AGZE..AW11..4FC198708-198912

sub19000-16353

main19000-16640i4AGELU..AW11..5F198803-198912

sub19000-16641

main19000-16650i4AGELU..AW11..4FC198803-198912

sub19000-16651

1 parts on this diagram · 1 diagram in section
